Garmin GPSMAP 8610xsv With Mapping and Sonar Kit (10 inch screen)

Complete with GPS and Fishfinder



SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT



The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.

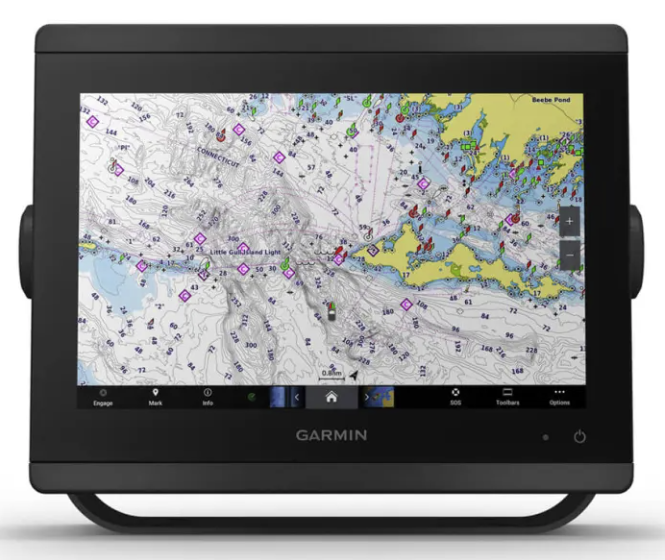

Navigate confidently with built-in Garmin Navionics+ inland and coastal mapping1.

Easily build your marine system using the best of network connectivity.

See below and around your boat with built-in sonar capabilities (transducers sold separately).

From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.

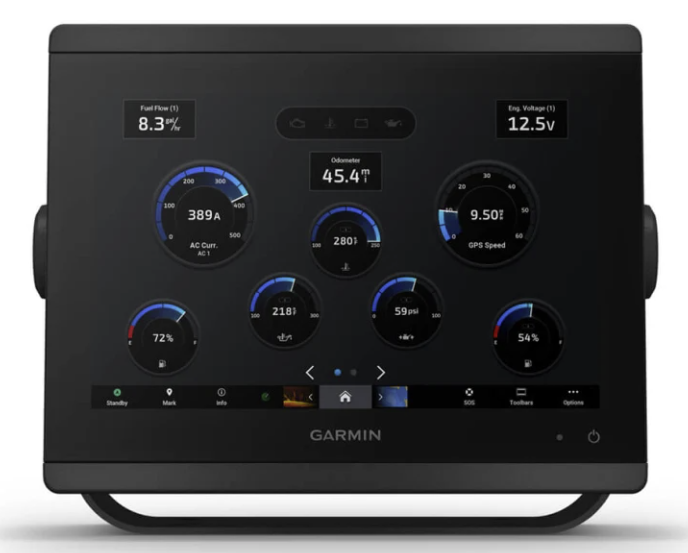

With SmartMode station controls, everything is designed to give you quick, one-touch access to the information you need.

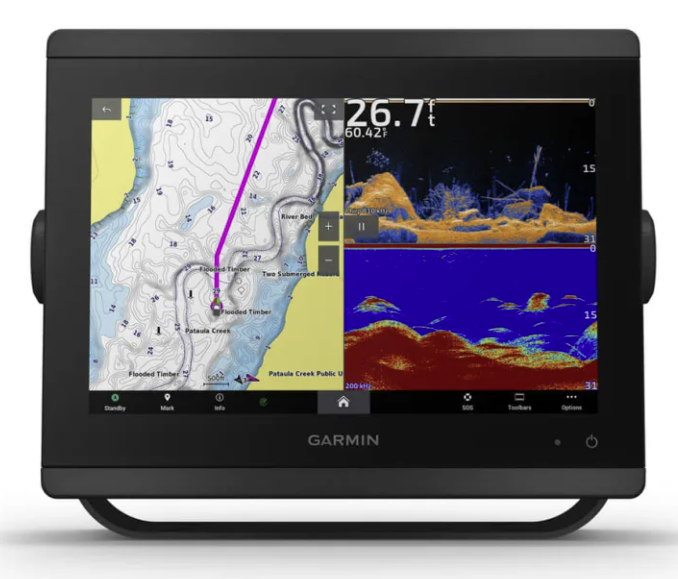

The Garmin GPSMAP 8610xsv is an easy-to-use, easy-to-install chartplotter combo that delivers MFD performance in a combo-size package. Complete with GPS capabilities, this 10-inch display brings professional-grade navigation to your vessel.

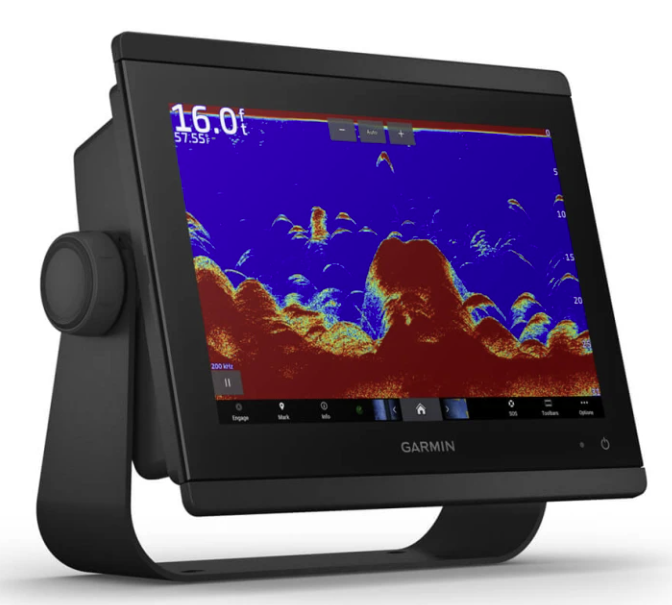

All-seeing live sonar from Garmin is the most unique and innovative sonar on the water. This state-of-the-art sonar technology gives you the ability to see fish swimming, see your lure and see it all live and in real time. It even shows you 3D images of fish and structure around your boat.







Technical Specifications

General

Dimension 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)
Weight 5.2 lbs (2.4 kg)
Water rating IPX7
Mounting Options Bail, flat or flush
Input Touchscreen

Touchscreen Display

Display Type WUXGA, IPS
Display Size 8.6" x 5.4"; 10.1" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)
Display Resolution 1920 x 1200 pixels

Maps & Memory

Accepts Data Cards 2 microSD cards
Waypoints 5,000
Track Points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Sensors

GPS
GLONASS
Galileo
Built-in Receiver 10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS

Built-in Maps

Built-in Auto Guidance+
Garmin Navionics+ Inland & Coastal
Tide Tables

Optional Map Support

Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster Chart Support

Chartplotter Features

Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ Compatible Radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® Compatible Yes
GRID Compatible
Wireless Remote Compatible
Sailing Features
Spoken Audio Alerts
OneHelm Support

Electrical Features

Power Input 10 to 32 Vdc
Typical Current Draw at 12 Vdc 1.5 A
Maximum Current Draw at 12 Vdc 6.0 A
Maximum Power Usage at 10 Vdc 40.1W

Sonar Features

Displays Sonar
Power Output 1 kW
Traditional Sonar (Dual Frequency/Beam) Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz

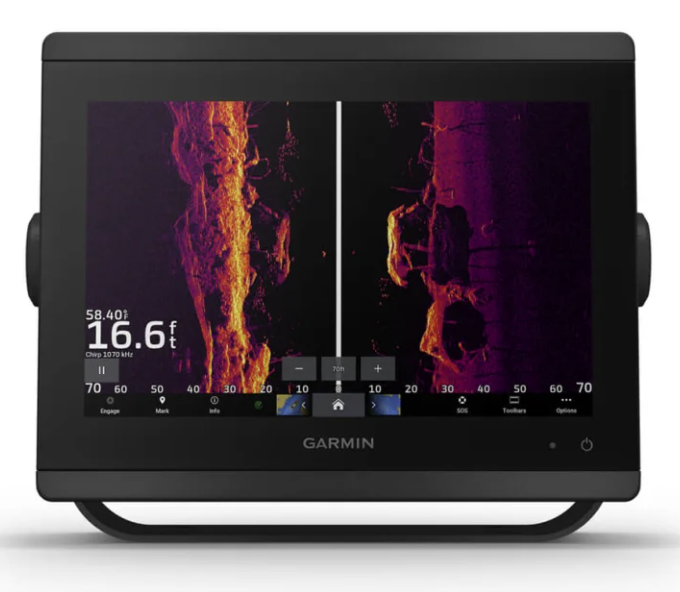

SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ Sonar
LiveScope

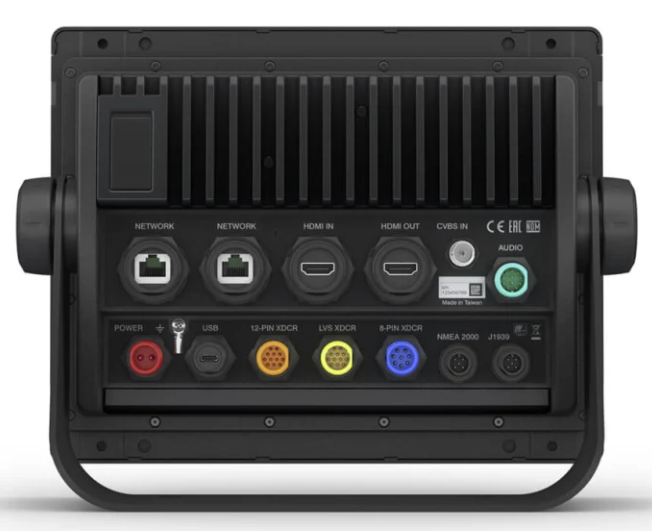

Connections

NMEA 2000® Ports 1
NMEA 0183 Input (Rx) Ports 1
NMEA 0183 Output (Tx) Ports 1
Video Input Ports 1 (BNC composite); 1 HDMI (HDCP compliant)
Video Output Ports 1 HDMI
J1939 Ports 1
Garmin Marine Network Ports 2
8-pin Transducer Ports
12-pin Transducer Ports
USB Ports
Bluetooth® Pairing
ANT® (Connectivity)
Garmin Wi-Fi Network (Local Connection)




GARMIN SAILASSIST™ SAILING FEATURES.....View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

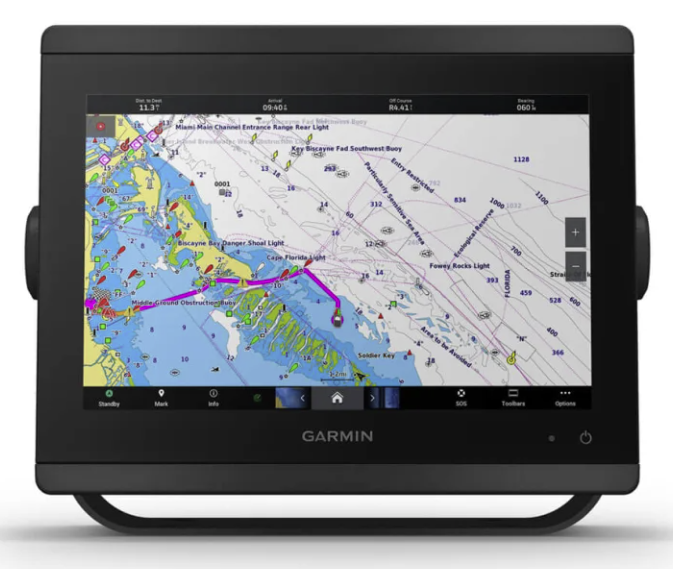

PRELOADED MAPPING..... Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping that includes Auto Guidance+™ technology2 and a 1-year subscription for downloadable daily updates and more on select chartplotters.
OPTIONAL CHARTS AND MAPS..... Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.
SAILING POLARS..... Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

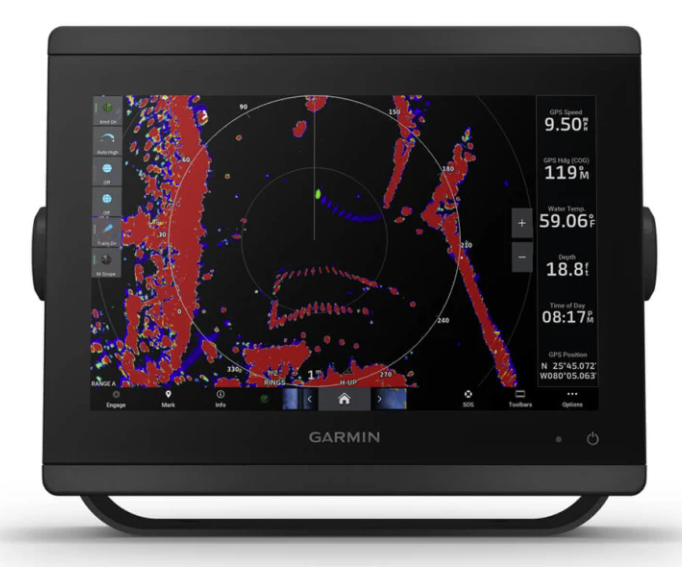

GARMIN MARINE NETWORK..... If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.
NMEA 2000® AND NMEA 0183 NETWORKS..... Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN® APP..... Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more.
INTEGRATED BLUETOOTH® AND ANT TECHNOLOGIES..... Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
SMARTMODE STATION CONTROLS..... Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

HD IPS TOUCHSCREEN

Available in sizes from 10” to 24”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

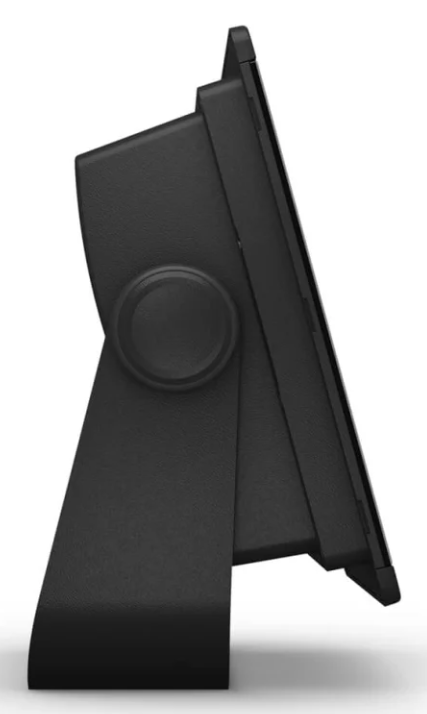

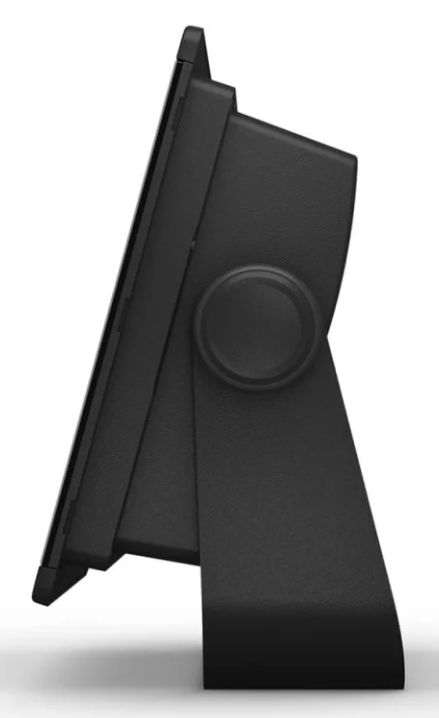

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

GRID™ 20 REMOTE CONTROL

The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

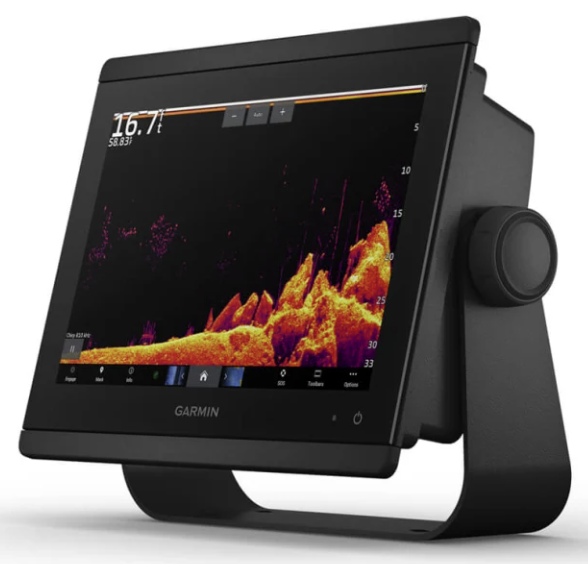

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).
