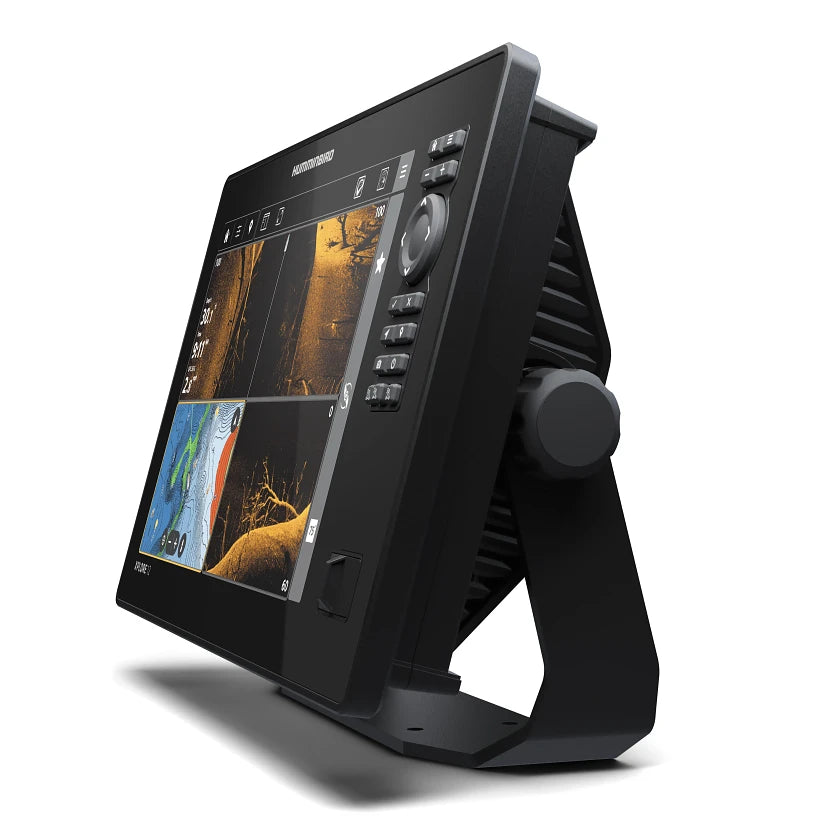

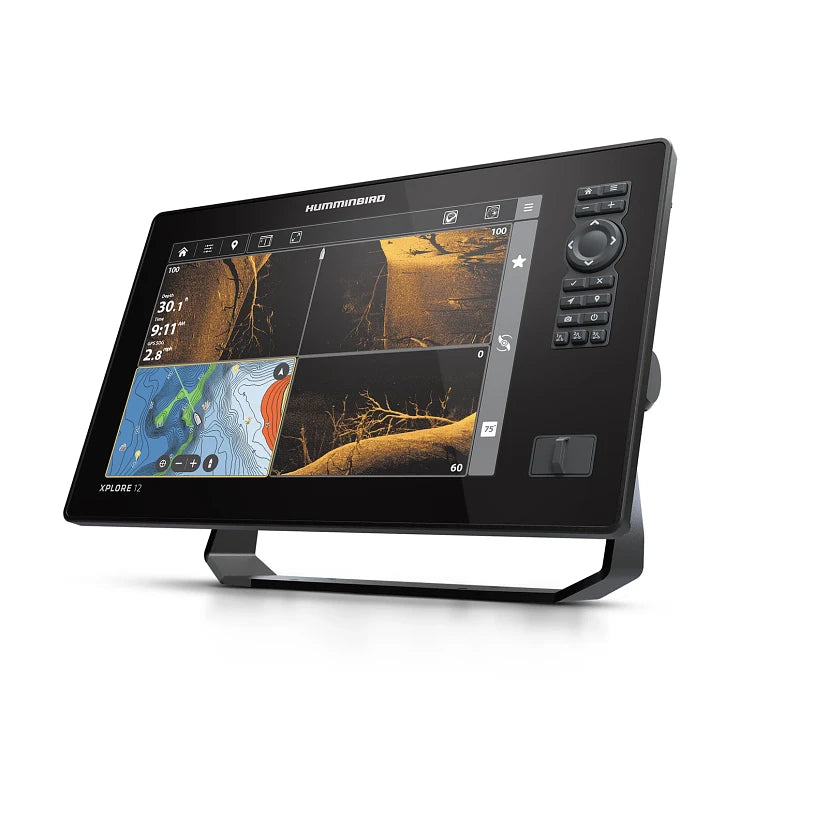

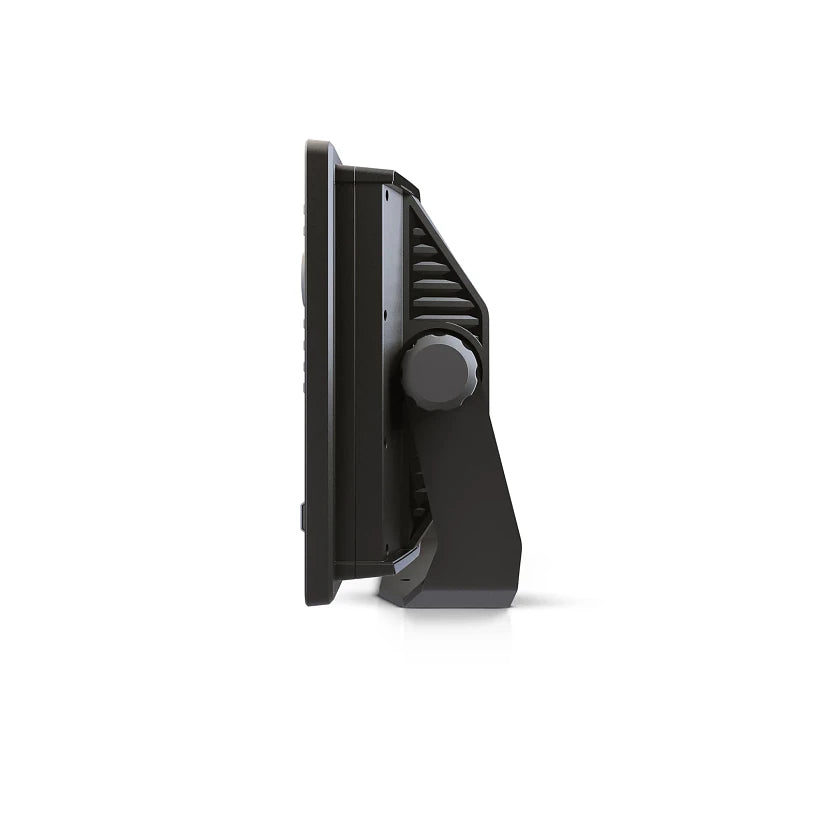

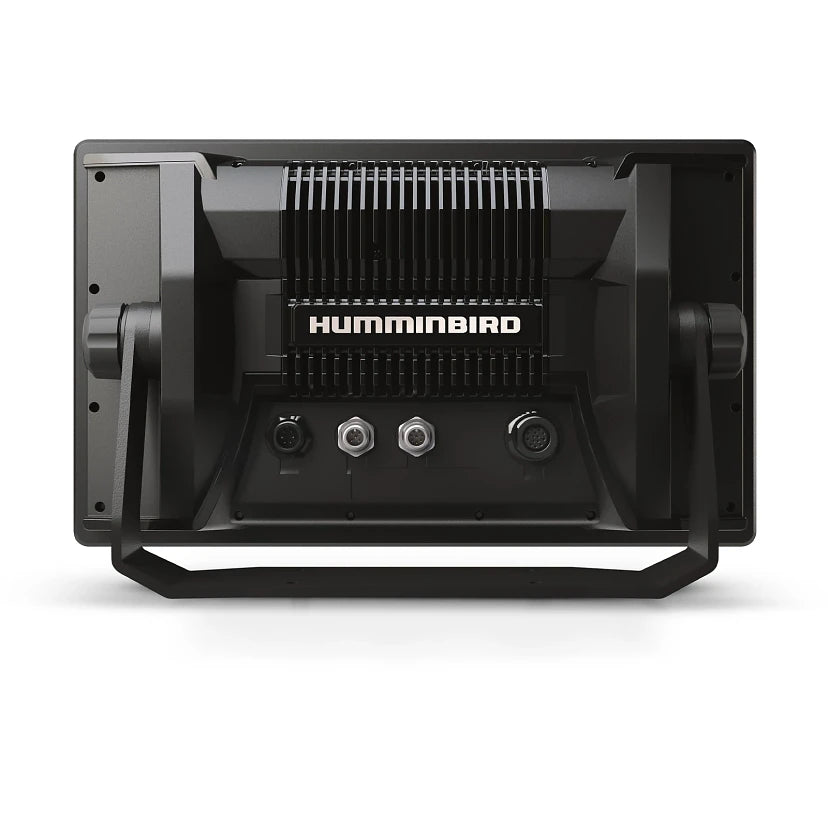

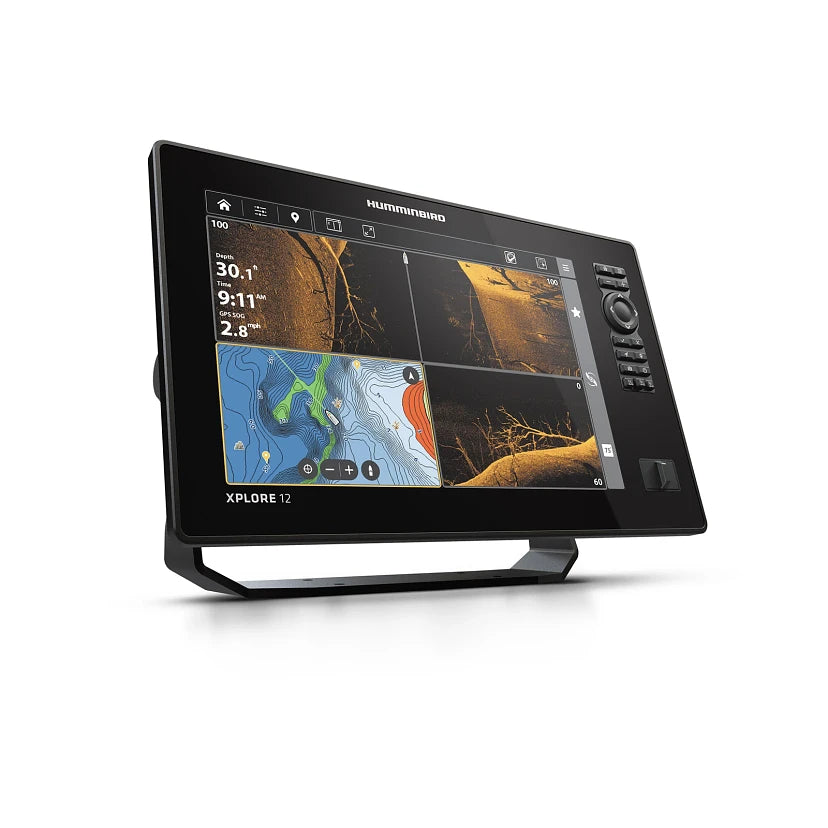

Humminbird XPLORE 12 CMSI+ Fish Finder

FEATURES

• Full-HD Display with Cross Touch® interface

XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.

• MEGA Side Imaging+

See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

• MEGA Down Imaging+

Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

• Dual Spectrum CHIRP Sonar

Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

• Internal GPS and Humminbird Basemap

Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

• Premium Chart Compatible

Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

• Includes LakeMaster® and CoastMaster® VX Maps

Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada safely and with confidence. Tools like 1-foot contours, depth and shallow water highlights help you traverse waters with certainty.

• Built-in SmartStrike™

Included with all LakeMaster® and CoastMaster® charts, SmartStrike™ highlights the best fishing spots based on real-time conditions—right from your map card

• AutoChart Live

Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

• One-Boat Network Compatible

Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

• Ethernet Networking

High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

• Bluetooth

Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App.

• NMEA 2000 Networking Built-in

Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

• Compatible with MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom (Sold Separately).
• In-Dash Installation Note: If indash mounted, an external GPS antenna is required to ensure accurate positioning and navigation.
• 3-Year Limited Warranty with Registration

WHAT'S IN THE BOX

• XPLORE Control Head
• 10 ft Power Cable(1)
• LakeMaster/CoastMaster Map Card
• XPLORE Mounting Bracket & Mounting Hardware

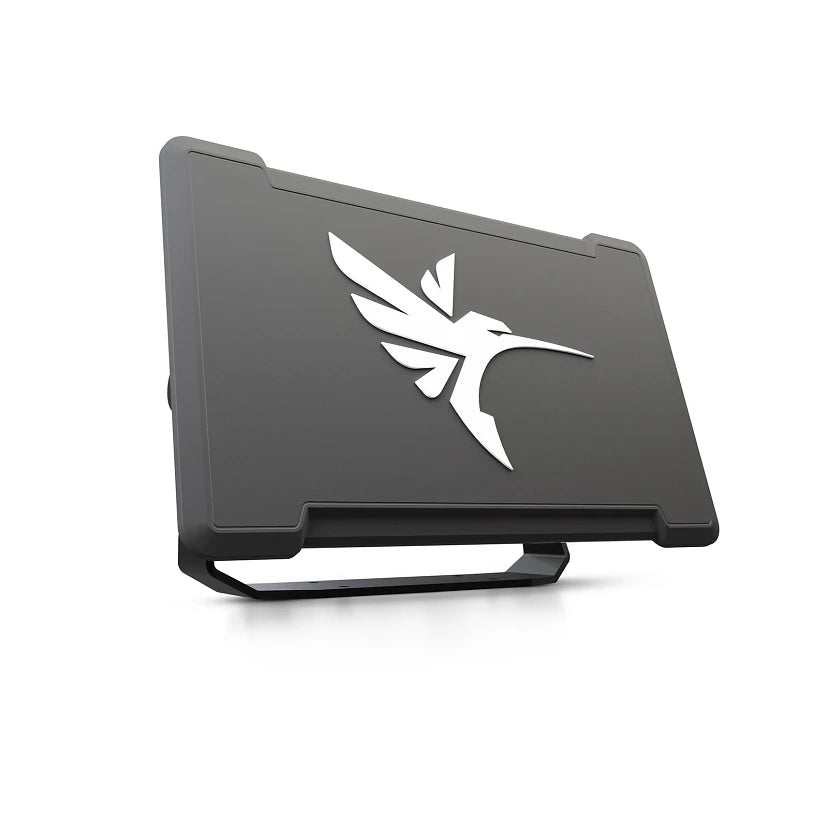

• Premium Silicone Unit Cover
• XM 14 HW MSI T - Transom-Mount Transducer



Specifications

Product Information • Model: XPLORE 12 CMSI+ Fish Finder • Product Code: 412020-1 • Series: XPLORE • UPC: 0082324058691

Physical Dimensions • Display Size (Diagonal): 12.1 in • Length: 14.15 in | 35.94 cm • Height: 8.46 in | 21.49 cm • Width: 3.4 in | 8.64 cm • Weight: 6 lb 4.96 oz | 2.86 kg

Display • Display Type: Color TFT • Display Pixel Matrix: 1280H x 800V • Display Colors: 24-Bit Grayscale • Interface: Touch Screen, Keypad Control

Compatibility • Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2

Features • Touch Screen, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi, MEGA Imaging • Memory Card Slot: Dual Micro SD • Transducer Included: XM 14 HW CMSI T

Sonar Specifications • Sonar - Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ • Sonar - Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB • Sonar - Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low • Sonar - Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA • Target Separation: 2.5 in

CHIRP Specifications • CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) • CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)

Depth & Range • Depth - Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) • Depth - Down Imaging: 200 ft (MEGA), 400 ft (455 kHz) • Range - Side Imaging (Side-To-Side): 800 ft (455 kHz), 400 ft (MEGA)

Power • Power Input: 10.8-20 VDC • Power Draw: 2.4 Amps • Power Output Peak-to-Peak: 8000 Watts • Power Output RMS: 1000 Watts

Mounting • Mount - Standard: Gimbal • Mount - Standard Size: 14.145 in W x 8.911 in H x 3.989 in D • Mount - Optional: In-Dash Mounting Kit • Mount - Optional Size: 14.145 in W x 8.911 in H x 3.989 in D • Transducer Mount Location: Transom

GPS & Navigation • GPS Chartplotting: Included • GPS Receiver: Internal • GPS Trackplotting: Not Supported • Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000

Mapping Compatibility • Humminbird Basemap: Included • LakeMaster Compatibility: Yes • CoastMaster Compatibility: Yes • Navionics Gold/HotMaps Compatibility: Yes • Navionics Platinum+ Compatibility: Yes • Platinum Compatibility: Yes

Advanced Features & Compatibility • 360 Imaging Compatibility: Yes • MEGA Live Compatibility: Yes • Minn Kota Advanced GPS Navigation Compatibility: Yes • Minn Kota i-Pilot Link Compatibility: Yes • Minn Kota Talon Shallow Water Anchor Compatibility: Yes • Radar Compatibility: Yes • 5-Port Ethernet Switch Compatibility: Yes • AIS Compatibility: Optional • Autopilot Compatibility: No • Heading Sensor GPS Compatibility: No • Heading Sensor GPS (NMEA 2000) Compatibility: Yes • NMEA2000: Included • HDMI Compatible: No

Additional Features • Screen Snap Shot: Included • Sonar Recording: Included • Speed: Included • Temperature: Built In • Temperature Alarm: Yes • Temperature Graph: Yes • Upgradable Software: Yes • View Preset Keys: Yes • X-Press Menu System: Yes • Custom Digital Readout: Yes • Custom View Selections: Yes

Warranty • Three-Year Warranty with Registration
