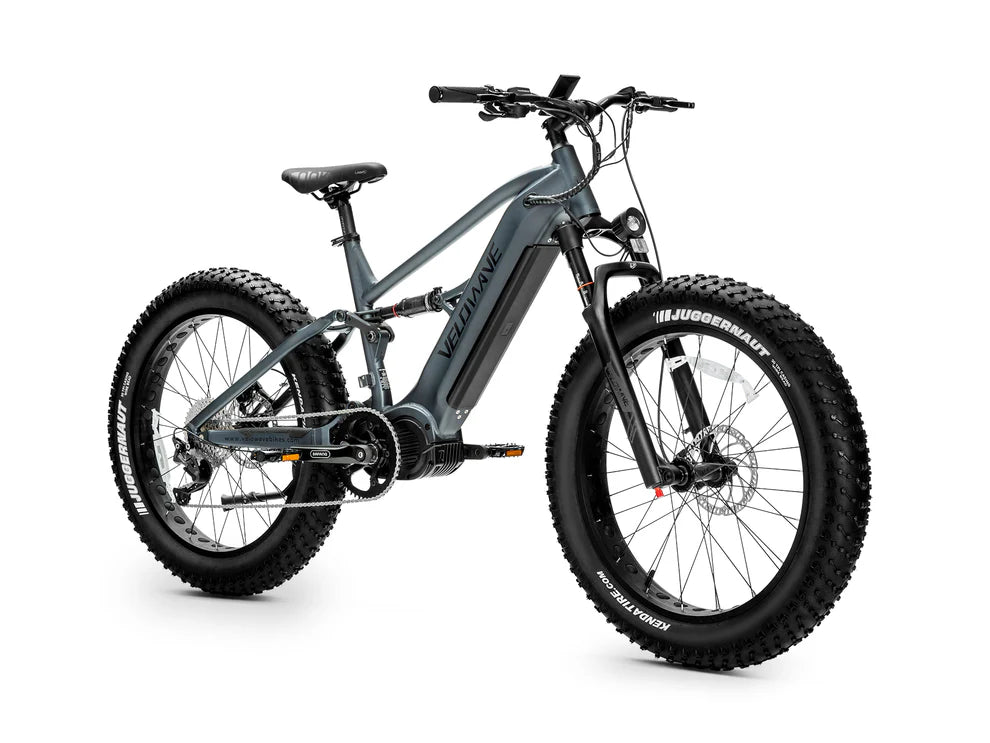

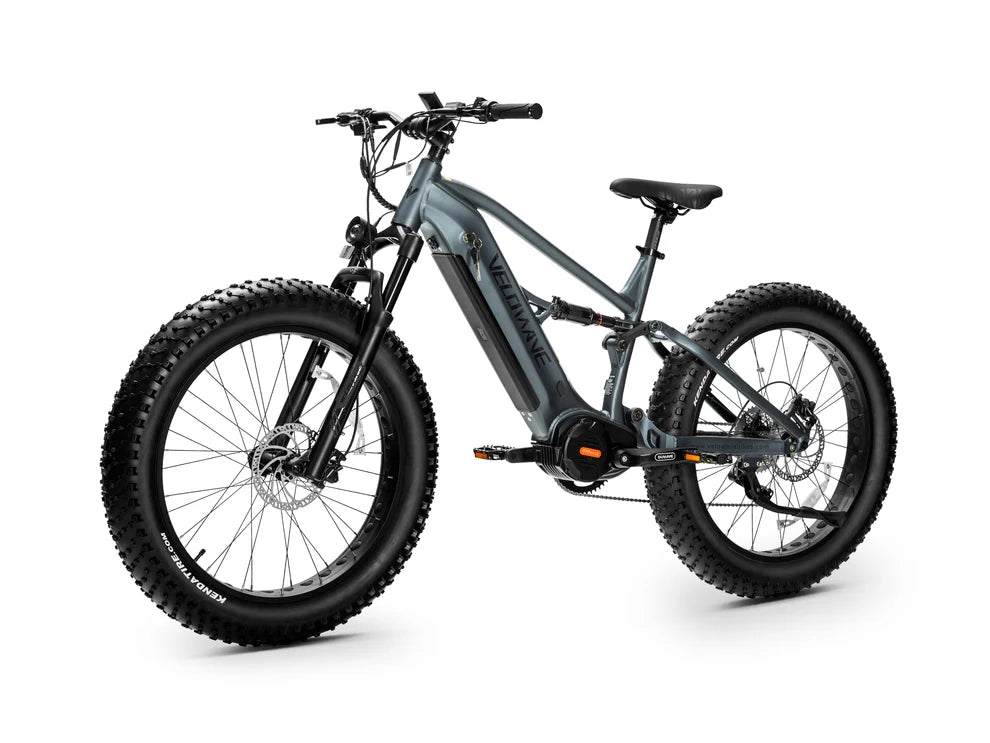

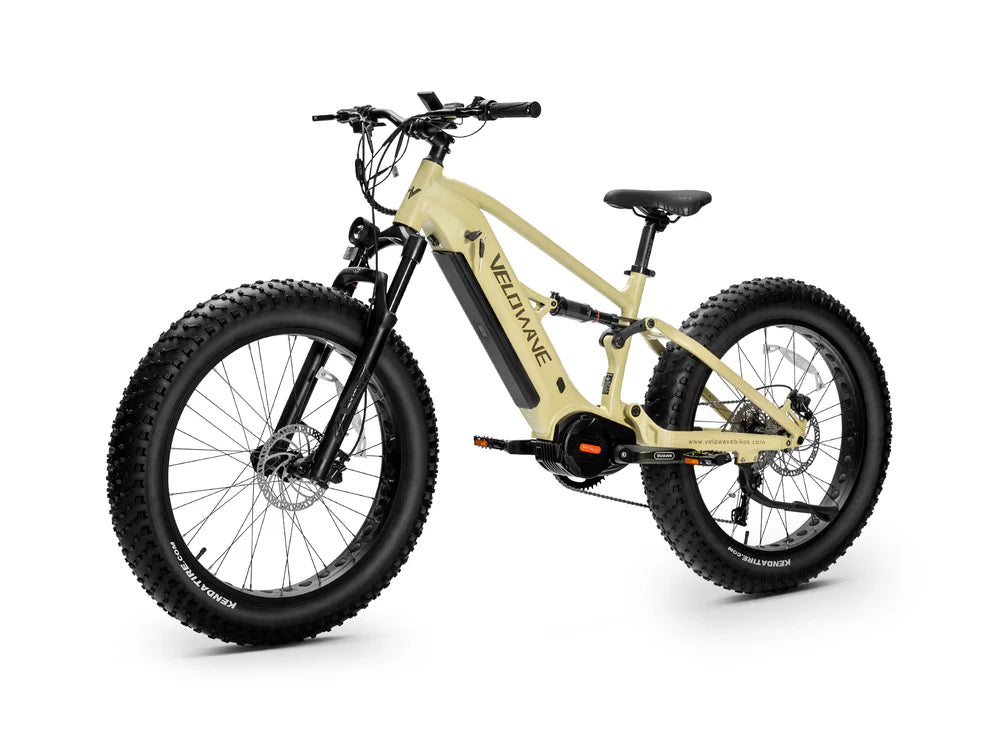

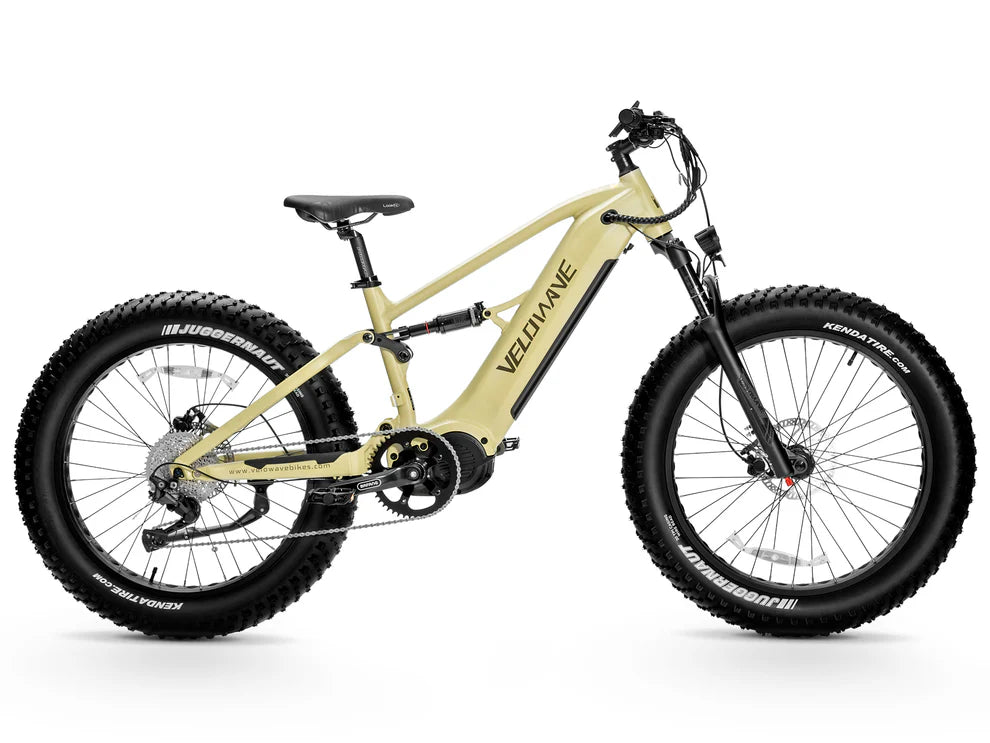

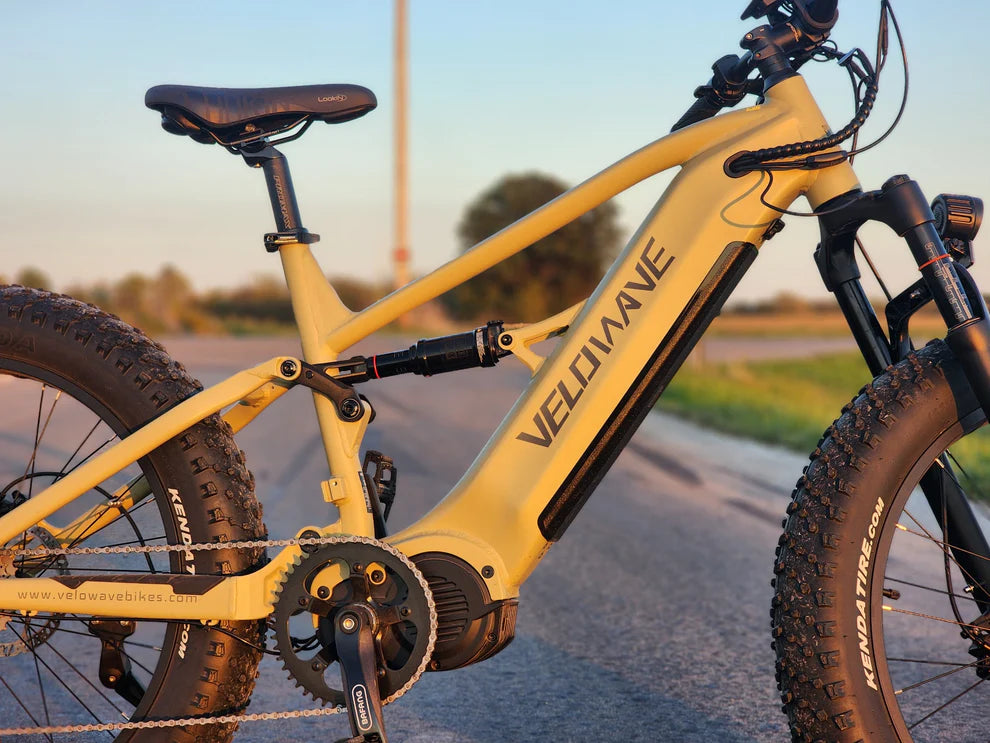

Velowave-Brawny MTB Mountain eBike

Sale price$2,999.00

Color:
Tire Size:

Authorized Velowave Dealer
Full Manufacturer Warranty
Ships Directly From Velowave
Free Ground Shipping on Orders Over $99 (Lower 48)
No Sales Tax Outside NC

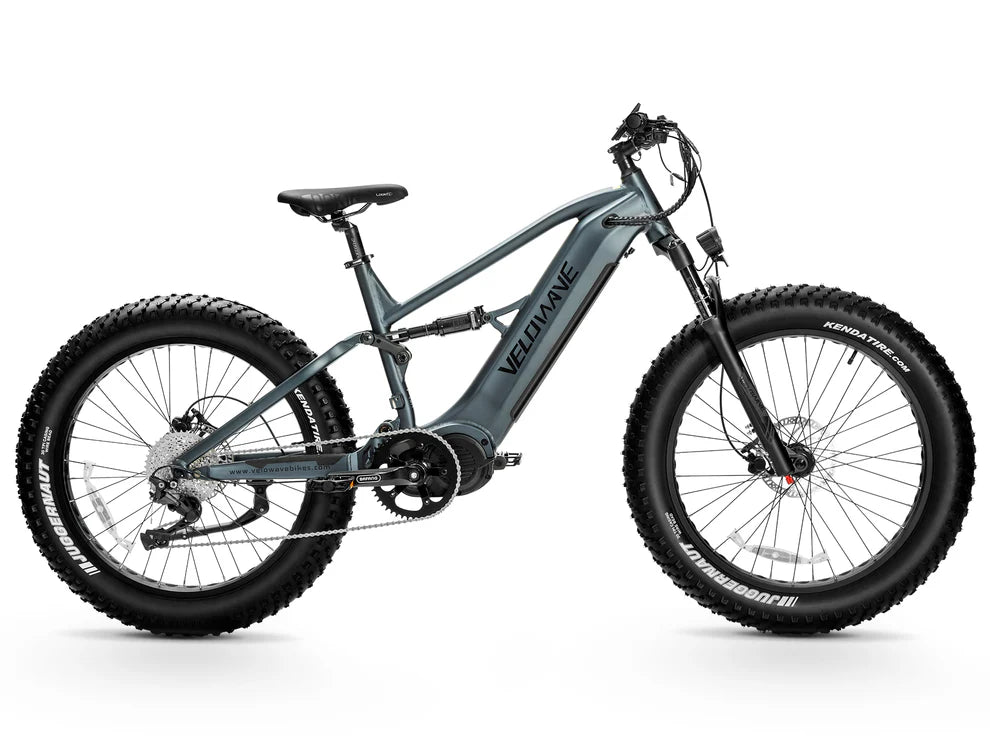

Velowave-Brawny MTB Mountain eBike
Velowave-Brawny MTB Mountain eBike Sale price$2,999.00

Brawny XM

Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It’s designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.

Size 17'' 19''
Total Length 2087mm 2100mm
Head Tube Length 150mm 150mm
Seat Tube 432mm 483mm
Handlebar Height 1158mm 1158mm
Wheelbase 1318mm 1331mm
Standover Height 774mm 823mm
Reach 469mm 475mm
Seat Height Min/Max 841mm/1040mm 890mm/1090mm



General

  • Classes:Off-Road (Ebikes can go up to 37mph with pedal assistance)
  • Max Speed:Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
  • Range:Avg. 75 Miles* on PAS, up to 85 Miles on Level 1, 60 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F (30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

  • Frame:6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
  • Fork:Air Suspension Fork with 100mm travel, with lockout

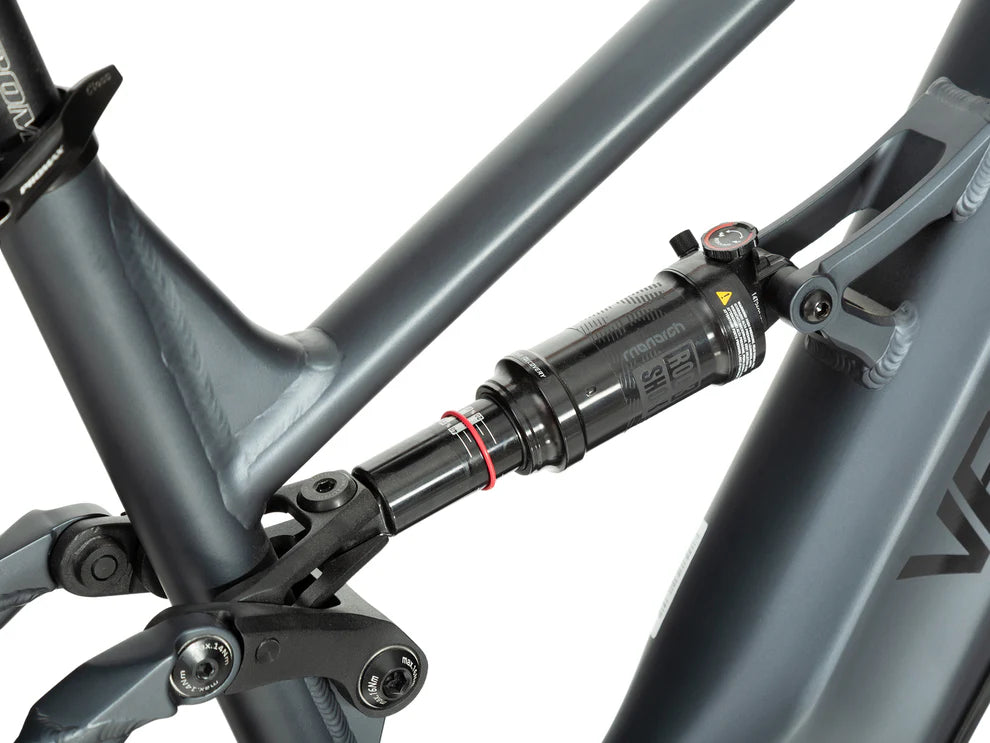

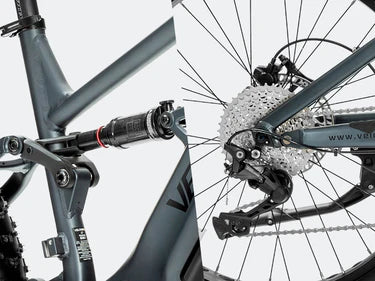

  • Rear Suspension:Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment

Wheels

  • Rim:Aluminum 26" 36H Front & Rear
  • Front Wheel Spokes:Black Stainless 13G x 255/257 mm, Front and Rear
  • Hubs:Disc Nutted Front / Rear Axles
  • Tire:Kenda 26" x 4.8" Fat Tires
  • Tire Size:26" x 4.8"

E-system

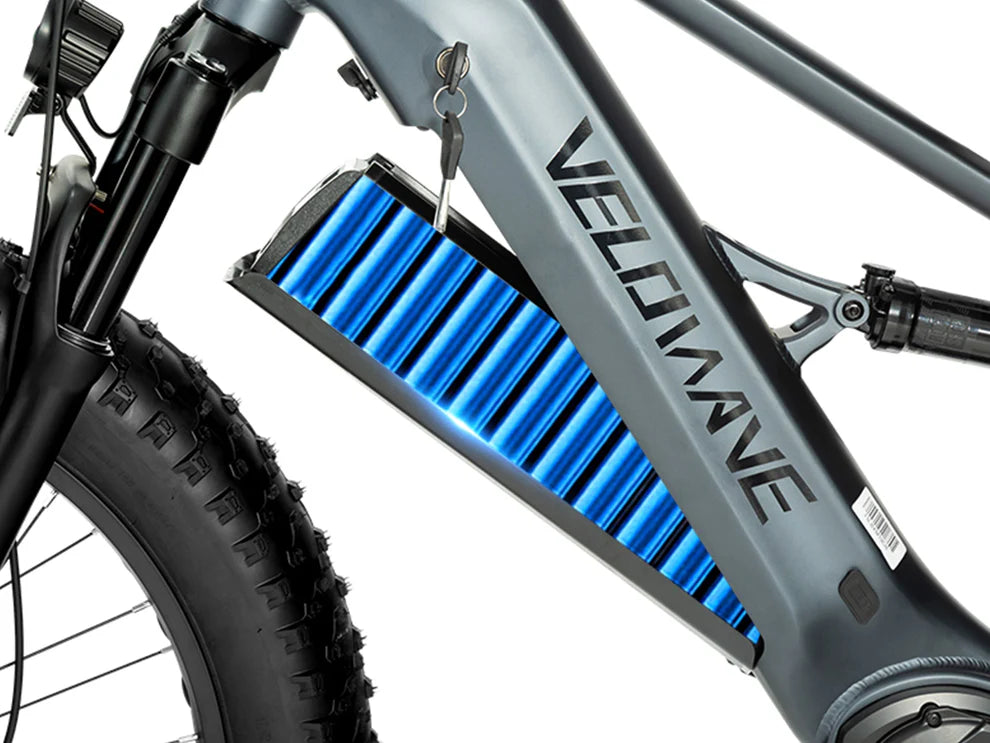

  • Battery:Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
  • Charger:48V 3 Amp Charger, Approx. 7 Hour Charging

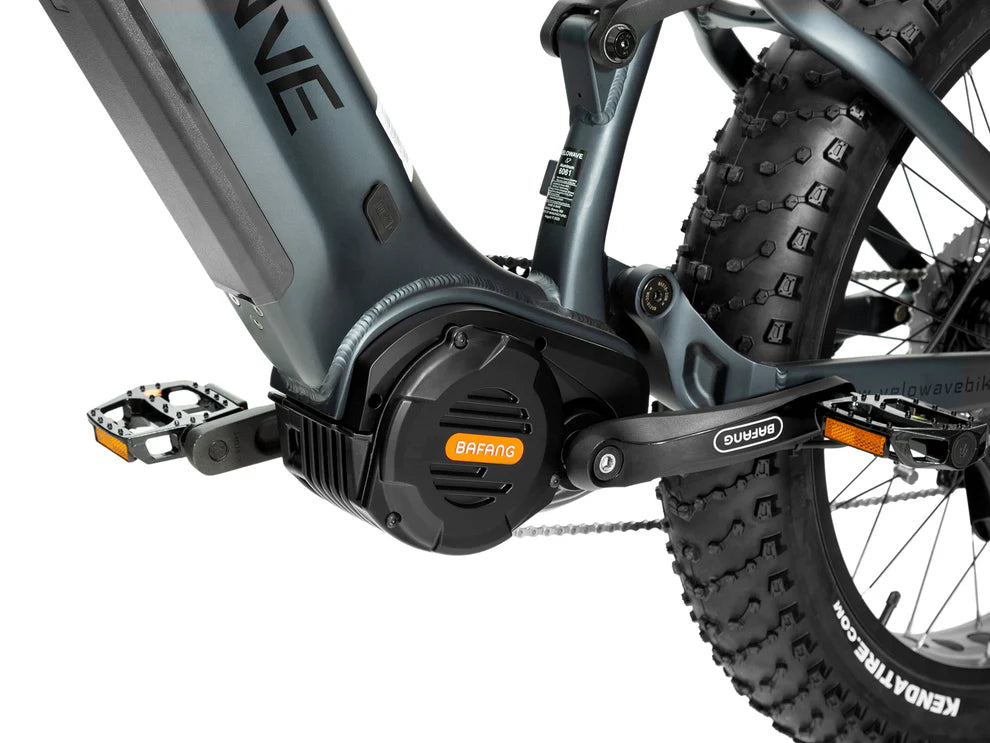

  • Motor:1000W (Peak 1200W),160Nm

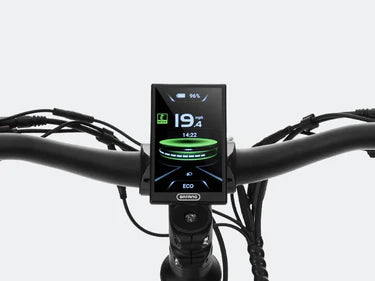

  • Display:TFT Smart Easy Read Display with Backlight, Colorful screen
  • Pedal Assist:6 Levels
  • Sensor:Torque Sensor
  • Throttle:Throttle on demand - Throttle from a complete stop
  • Light:Front 48V LED Light 80 LUX; Rear Blinking Light

Drivetrain

  • Shifter:Shimano 10-Speed Thumb Shift
  • Pedal Assist:6 Levels
  • Crankset:170mm w/ 48 T
  • Freewheel:Shimano 11-42T, 10-Speed CASSETTE
  • Pedals:Alloy Platform
  • Chain:KMC 134 Link, 10-Speed

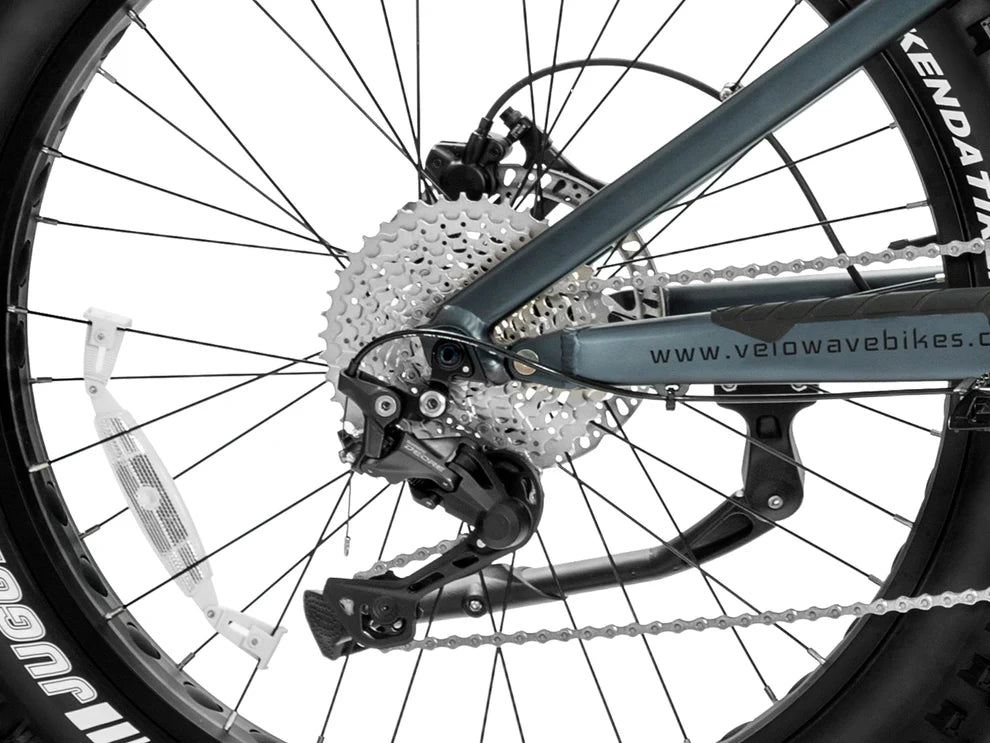

  • Rear Derailleur:Shimano Deore RD-M4120 11-Speed

Components

  • Saddle:Comfortable Wide Saddle
  • Seatpost:Forged Alloy, φ31.6x300mm
  • Seat Clamp:φ38.1mm Quick Release
  • Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
  • Handlebar:Aluminum Ø31.8mm, Width 740mm
  • Headset:Sealed Bearing Headset
  • Grips:Ergonomic Comfort
  • Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
  • Kickstand:Included, Rear Mount
  • Fenders:Not Included
  • Rear Rack:Not Included

Weight

  • Net Weight:82 lbs / 37.2 kg (including battery)
  • Gross Weight:111 lbs / 50.5 kg
  • Battery Weight:11.4 lbs / 5.15 kg
  • Max Load Capacity:385 lbs / 175 kg (including cargo)

Size

  • Product Size:2100 x 1158 x 745 mm
  • Packing Size:1700 x 350 x 900 mm



  • Recommended Rider Height: 5’4"- 6’5" (162 - 192cm)
  • Motor: 750WAvg
  • Range: 65 Miles
  • Sensor: Torque Sensor
  • Top Speed: 28 MPH
  • Battery: 48V 15AH
  • PayLoad Capacity: 300 lbs

Serious mountain bike with 1000W motor (peak 1200W), 160Nm torque, full front and rear suspension with 139mm travel, 26"x4.8" fat tires, up to 37 MPH - built for extreme off-road terrain!

Openairlifestyles.com honors all manufacturers warranties. This ebike comes with a 2 year limited warranty from Velowave eBikes.

Velowave eBikes take great pride in the quality and durability of their products. Every eBike we sell is backed by a limited warranty against manufacturing defects, ensuring peace of mind with your purchase. This document elaborates on the details of the warranty plan, including coverage information, claim application guidelines, cancellation policies, etc.

Initial Warranty Period

Velowave eBikes provides a two-year initial warranty service for your eBike. Within these two years, if the eBike fails to function properly due to material or workmanship defects, they will provide repair or replacement services for you by the provisions of this plan.

Covered Products

  • This warranty applies only to products, parts, and components (hereafter PRODUCTS) that have been manufactured, assembled, or sold in new condition by Velowave Bikes.
  • This warranty applies only to replacement repair of PRODUCTS in case of a manufacturing flaw in materials or workmanship, in accordance with the Scope of Warranty Service, and subject to any and all exclusions, limitations, and procedures explained below.
  • This warranty is not transferable in any way and may not be exercised by anyone other than the original retail buyer (hereafter BUYER) of the PRODUCTS, only if the BUYER has retained constant ownership of the PRODUCTS since their original purchase of the PRODUCTS and only to PRODUCTS purchased in new condition either.

Warranty Period: 2 Years

  • Battery packs are covered for a 2-year Warranty from the date of original retail purchase or up to 300 charging cycles, whichever occurs first. The batteries are designed to retain up to 75% of their original capacity during that time.
  • Other electronic components including the motor, controller, display, charger, and throttle are covered under a 2-year warranty from the date of purchase.
  • Bicycle frames are covered by a 2-year warranty against manufacturing defects.
  • Mechanical components are covered by a 1-year warranty against manufacturing defects.
  • For all PRODUCTS, this warranty period is counted from the date the products were delivered to the BUYER unless excluded from warranty or otherwise voided from coverage under warranty.
  • New eBike Guarantee - Velowave eBike offers full replacement of defective parts with free shipping within the first 30 days of your bike order. After 30 days the customer is responsible for all return shipment costs to Velowave.

Apart from manufacturing defects that could be present, parts that wear due to normal use are listed:

  • Bearings
  • Brake Pads
  • Chains
  • Free Hub Bodies
  • Handlebar Grips
  • Rubber moving parts
  • Shifter, brake cables and casings
  • Spokes
  • Sprockets
  • Stripped threads/bolts
  • Tools
  • Transmission gears

and are not included in the warranty but may be replaced on a case-by-case basis within the first 60 days. Velowave eBikes shall not be liable if you install, operate, clean, or maintain your ebike without following the owners' manual instructions. Misuse, abuse, alteration, and natural disasters are not included in this warranty.

Extended Warranty Period

If you wish to continue enjoying the warranty service after the initial two-year warranty period, you can choose to extend the warranty term.
The extended warranty period takes effect from the end date of the initial warranty period. The
specific coverage scope is the same as that of the initial warranty period, but it is subject to the
various terms and conditions stipulated in this document.

You can typically expect your eBike to be delivered by Fedex, UPS, or USPS and arrive within 7-9 business days, depending on your location and product availability. The ebike will be packaged in a large shipping box. See our Shipping Policy for more info.

At openairlifestyles.com, we want your shopping experience to be simple and worry free. If something isn’t quite right, our return and refund process is designed to be clear, fair, and hassle free.

Occasionally mishaps may occur. We believe all issues can be resolved fairly, if given a chance. If you have any concerns that need corrected, please contact us to discuss and we will work together to resolve them.

Returns:

  • You may return most items within 30 days of the delivery date.
  • Unfortunately, we are unable to accept returns submitted after 30 days.
  • If the item is defective or incorrect, we’ll get the item back and either replace it or issue a refund.
  • Changed your mind, no problem, any returns for unused items in original packaging are accepted within 30 days. You’ll be responsible for the shipping both ways. Once we receive and inspect the returned item and everything is in the same condition as when shipped, we’ll issue a refund for the product (minus any shipping fees).
  • If your item arrives broken, malfunctioning, or with missing parts, please contact us within 30 days of delivery. We’ll arrange a return, resend missing parts, or make it right at no cost to you. Please contact us ASAP and provide the order information and any pictures so we can understand what is going on. Once the item is shipped back and inspected, we’ll either send a replacement or issue a refund.
  • Once your return is received and approved, we’ll notify you via email. Refunds are typically issued to your original payment method within 3-4 business days.
    Please note: Your bank or card provider may take additional time to post the refund. If you haven’t received your refund after 7 business days, feel free to contact us at support@openairlifestyles.com.

Restocking Fees:

  • Some returns may be subject to a restocking fee, depending on the product and reason for return. We’ll always inform you in advance if this applies.

Questions:

We're here to help! For any return or refund inquiries, reach out to our Customer Support team at support@openairlifestyles.com.

Or give us a call at (888) 625-6055

Torque Sensor..... The torque sensor measures your pedaling force, allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.
Durable Frame.....Crafted from high-quality 6061 aluminum alloy, the step-thru frame ensures easy mounting and dismounting while providing strength and stability. Perfect for all riders, it combines sleek design with uncompromising durability, making every ride feel secure and comfortable..
Powerful Motor..... Feel the power of a 750W motor, reaching up to 1000W with 85Nm of torque. The Ranger 3.0 Step-Thru offers a dynamic riding experience, effortlessly reaching speeds of up to 28 MPH with Pedal Assist.
Long-Lasting Battery..... Enjoy up to 90 miles on Pedal Assist with the removable 48V 15Ah battery powered by LG cells. Sleekly integrated into the frame, the battery maintains the bike’s streamlined look while ensuring reliable performance for long-distance adventures.
Advanced Suspension..... Stay comfortable and in control with a hydraulic suspension fork featuring 60mm of travel and lockout capability. This suspension system absorbs shocks and vibrations, providing a smooth, stable ride over uneven terrain.
Smart and Responsive..... Stay informed and in control with the TFT Smart Display, featuring a colorful, backlit screen for clear visibility in any lighting condition. The integrated torque sensor provides a smooth and responsive ride, enhancing overall safety and comfort.
Tail Light..... The rear brake light, with a brightness of 12V 20 LUX, enhances your visibility on the road, ensuring safer rides in low-light conditions. Whether braking or cruising at night, it provides clear signals to those behind you, adding an extra layer of safety and confidence to your ride.
All-Terrain Tires for Stability.....The Ranger 3.0 Step-Thru is equipped with 26" x 4.0" Kenda fat tires, providing excellent traction and balance across various surfaces. From urban roads to off-road trails, these tires are designed for versatile performance and superior comfort.
Reliable Braking..... Stay safe with the hydraulic disc brakes, equipped with 180mm rotors and a power-cut-off function. This ensures strong, consistent braking in all weather and road conditions, giving you confidence on every ride.
