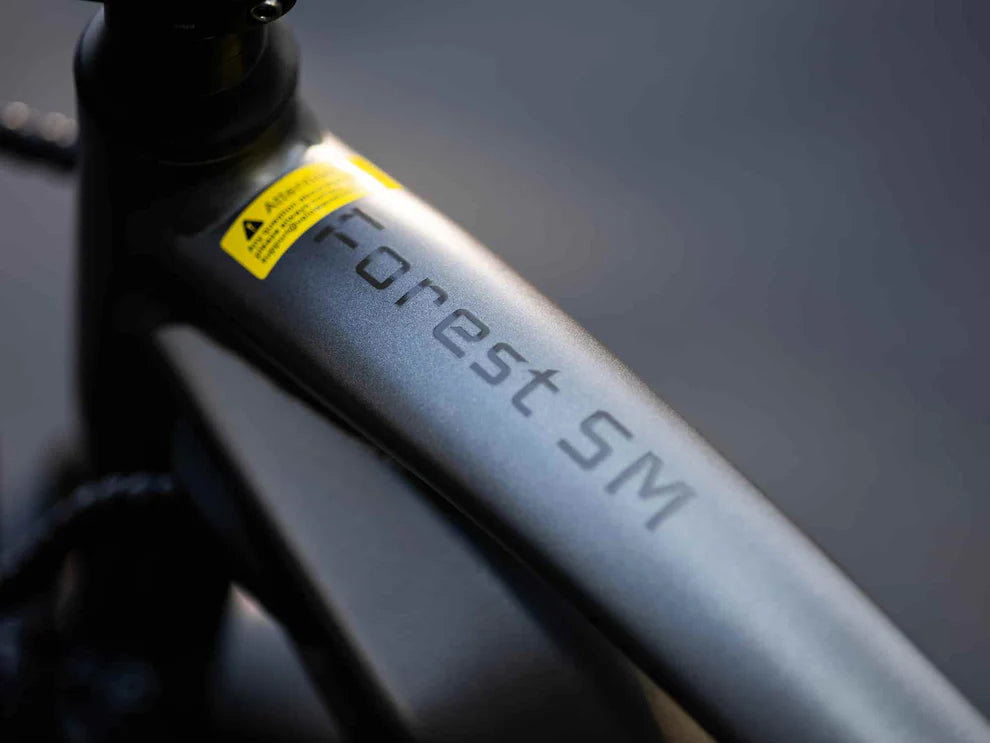

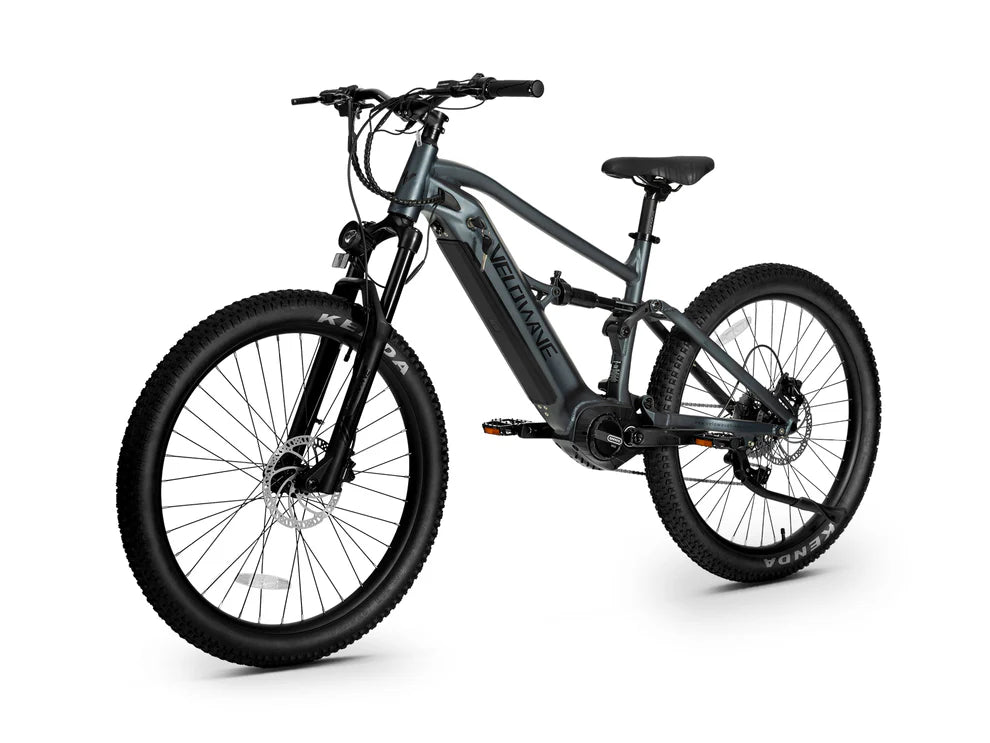

Forest SM

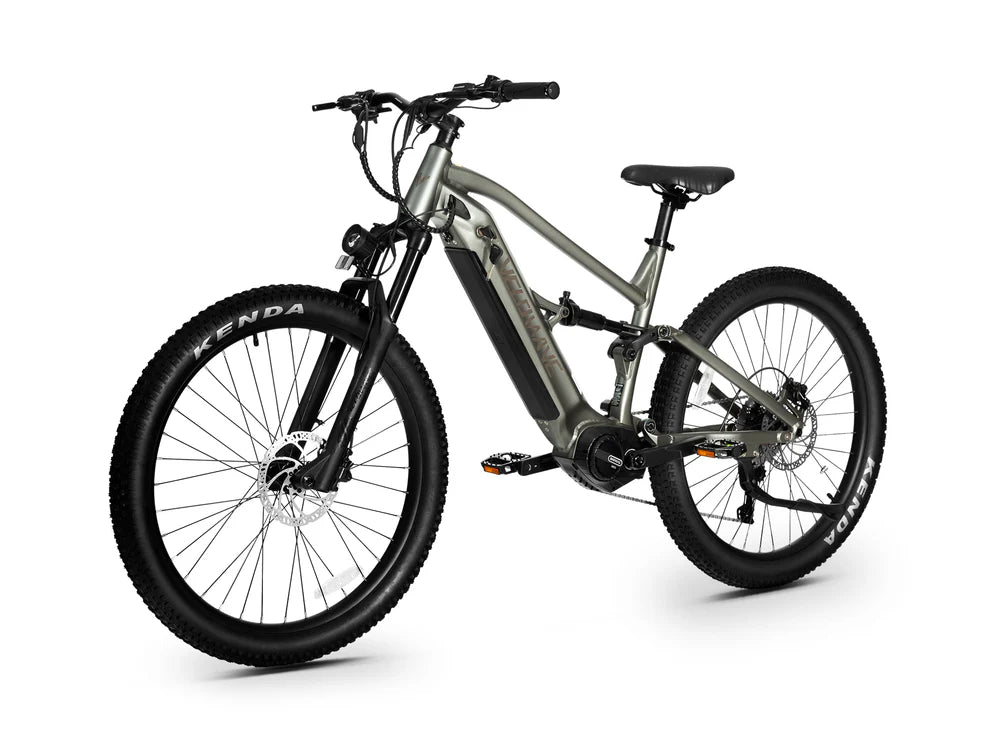

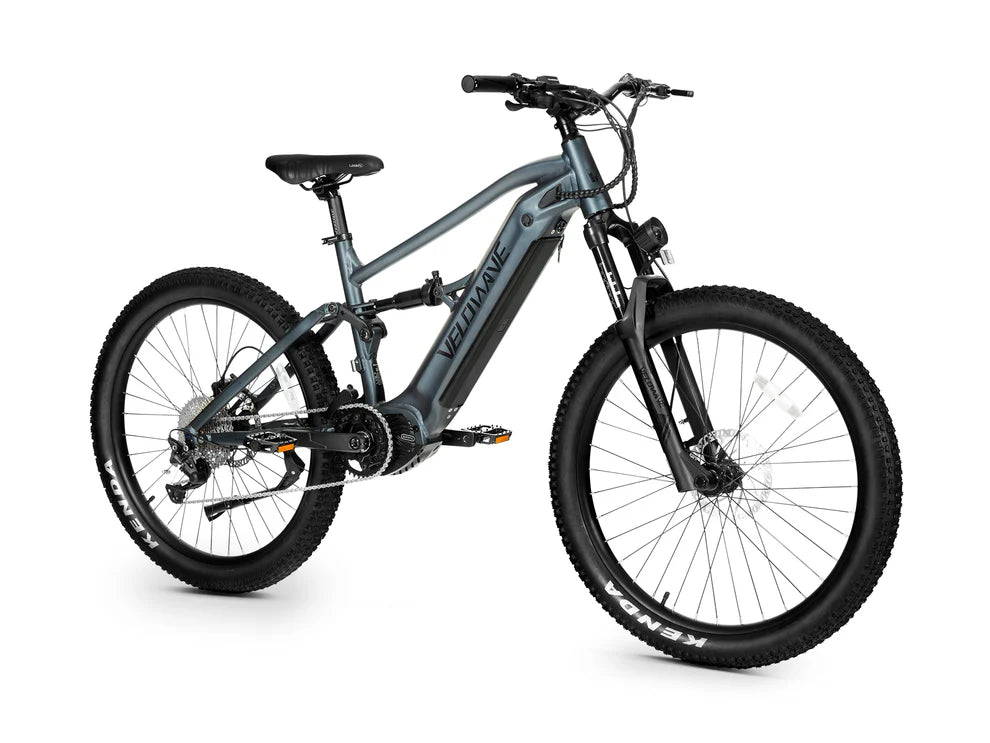

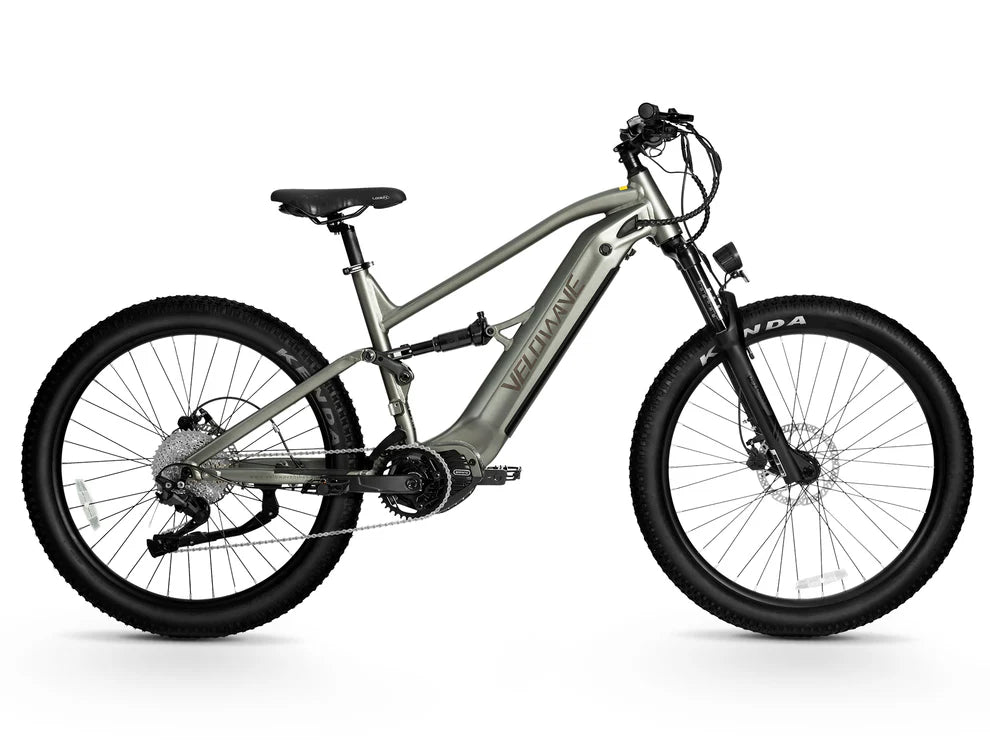

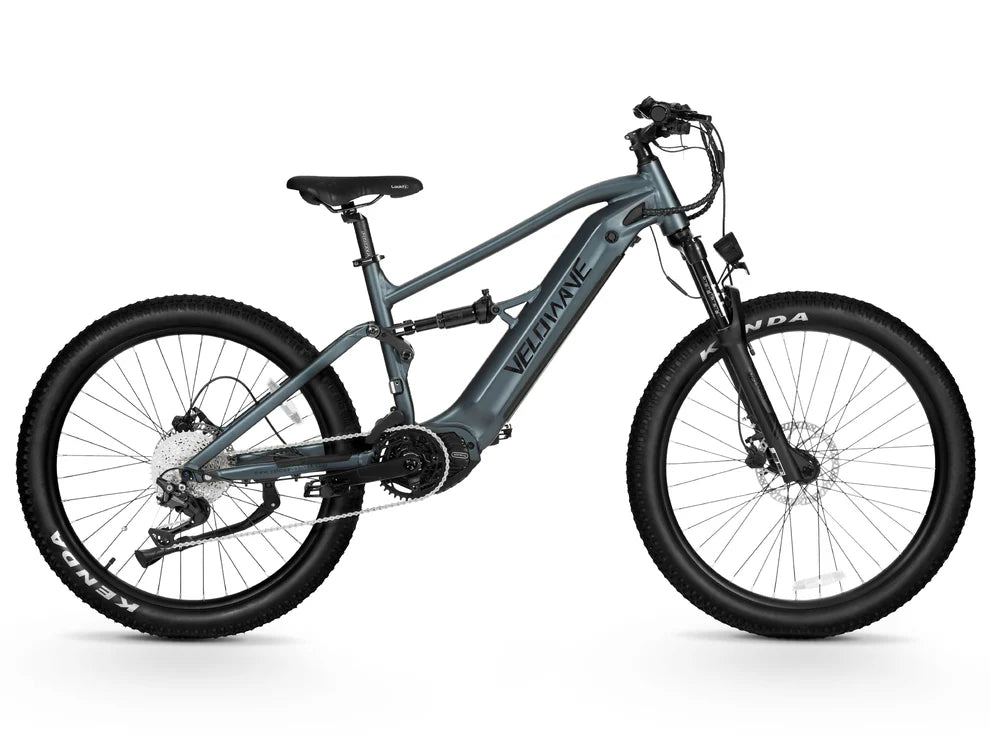

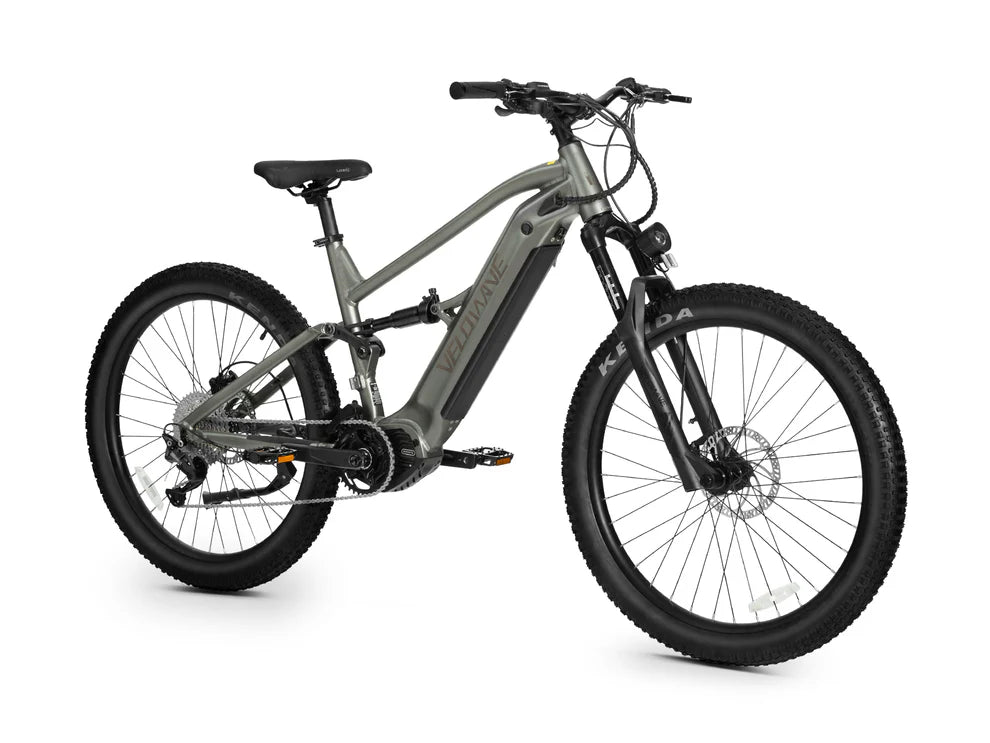

Whether you're exploring challenging trails or commuting through the city, the Forest electric bike combines state-of-the-art technology with rugged durability to elevate every ride. The 500W motor delivers robust performance, with a peak output of 760W and 130Nm of torque, ensuring smooth acceleration and excellent climbing ability. Enjoy a comfortable ride with the adjustable front and rear air suspension, which adapts to varying terrains and rider preferences.

Size 17'' 19''
Total Length 2000mm 2035mm
Head Tube Length 150mm 150mm
Seat Tube 432mm 470mm
Handlebar Height 1110mm 1110mm
Wheelbase 1272mm 1305mm
Standover Height 750mm 786mm
Reach 469mm 479mm
Seat Height Min/Max 855mm/1033mm 885mm/1063mm



General

  • Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
  • Max Speed:Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
  • Range:60 Miles* on PAS, up to 70 Miles on Level 1, 40 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

  • Frame:6061 Aluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 121 mm
  • Fork:Air Suspension Fork with 140mm travel, with lockout
  • Rear Suspension:185X45 air suspension with 42mm travel, with external rebound adjustment

Wheels

  • Rim:Aluminum 27.5" 36H Front & Rear
  • Front Wheel Spokes:Black Stainless 13G x 269/270 mm, Front and Rear
  • Hubs:Disc Nutted Front / Rear Axles
  • Tire:Kenda 27.5" x 2.8"
  • Tire Size:27.5" x 2.8"

E-system

  • Battery:Removable Internal Lithium-ion Battery 48V 15Ah (720Wh) with LG cells
  • Charger:48V 3 Amp Charger, Approx. 5 Hour Charging
  • Motor:500W (Peak 760W),130Nm
  • Display:TFT Smart Easy Read Display with Backlight, Colorful screen
  • Pedal Assist:6 Levels
  • Sensor:Torque Sensor
  • Throttle:Throttle on demand - Throttle from a complete stop
  • Light:Front 48V LED Light 80 LUX; Rear Blinking Light

Drivetrain

  • Shifter:Shimano 10-Speed Thumb Shift
  • Pedal Assist:6 Levels
  • Crankset:170mm w/ 38 T
  • Freewheel:Shimano 11-42T, 10-Speed CASSETTE
  • Pedals:Alloy Platform
  • Chain:KMC 122 Link, 10-Speed
  • Rear Derailleur:Shimano Deore RD-M4120 10-Speed

Components

  • Saddle:Comfortable Saddle
  • Seatpost:Forged Alloy, φ31.6x300mm
  • Seat Clamp:φ35mm Quick Release

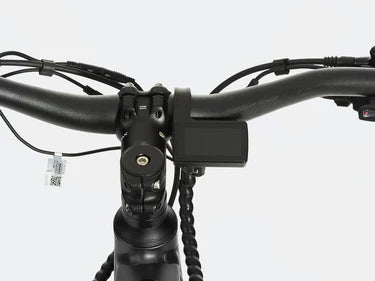

  • Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
  • Handlebar:Aluminum 31.8mm, Width 740mm
  • Headset:Sealed Bearing Headset
  • Grips:Ergonomic Comfort
  • Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
  • Kickstand:Included, Rear Mount
  • Fenders:Not Included
  • Rear Rack:Not Included

Weight

  • Net Weight:64 lbs / 29.2 kg
  • Gross Weight:91 lbs / 41.2 kg
  • Battery Weight:8.7 lbs / 3.95 kg
  • Max Load Capacity:385 lbs / 175 kg (including cargo)

Size

  • Product Size:2035 x 1110 x 745 mm
  • Packing Size:1700 x 300 x 830 mm

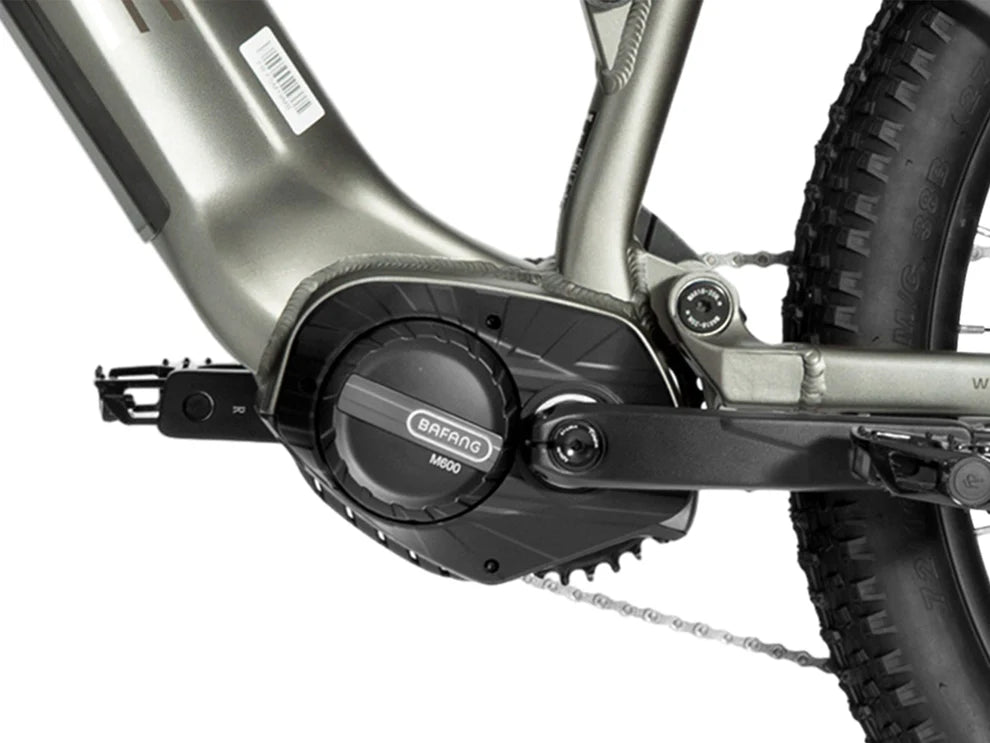

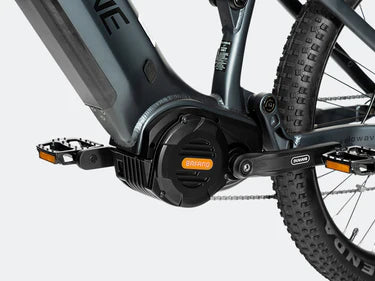

Powerful motor..... Feel the rush with a 500W motor delivering a peak power of 760W and 130Nm of torque, ensuring exhilarating acceleration and effortless climbs. Reach speeds of up to 28 MPH with pedal assist or cruise comfortably at 20 MPH using the throttle, giving you the freedom to conquer any terrain

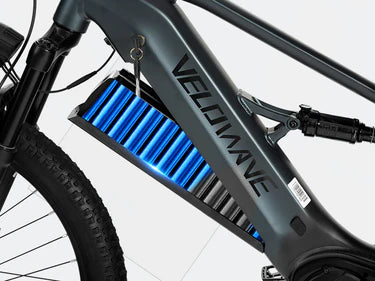

Long-Lasting Battery..... Equipped with a removable 48V 15Ah lithium-ion battery from LG, this bike provides up to 70 miles on pedal assist and 40 miles on throttle—ample range for extended adventures. Quickly recharge with the included 48V 3 Amp charger, getting you back on the trail in just 5 hours.

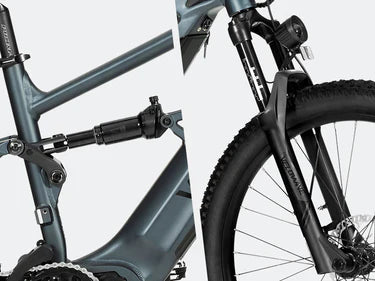

Premium Suspension..... Navigate with confidence using the 140mm air suspension fork and 185X45 rear air suspension, offering adjustable settings for a smooth ride over any bumps.

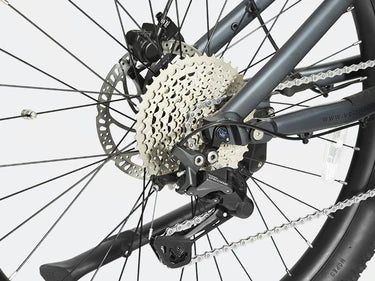

Precision Gear Shifts..... Enjoy seamless gear transitions with the Shimano Deore 10-speed rear derailleur and 11-42T cassette, delivering reliable performance on every ride.

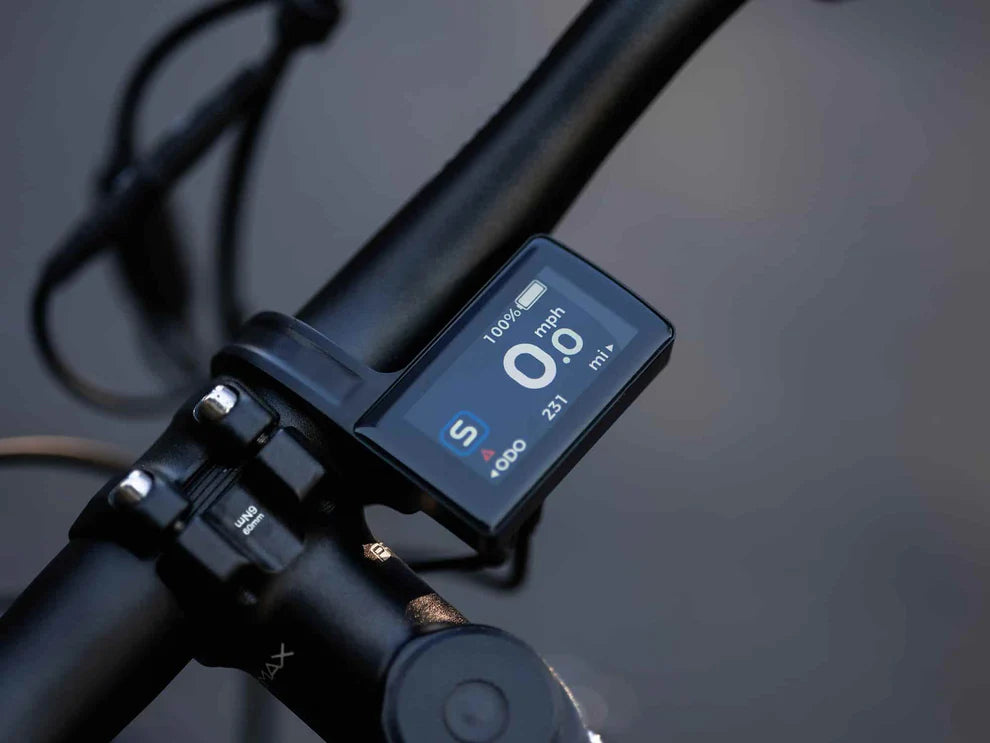

Dynamic Display..... Stay informed with the vibrant TFT Smart Display, offering clear visibility and intuitive controls even in bright sunlight.

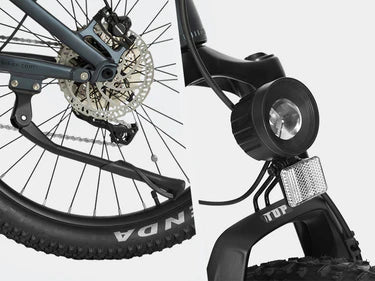

Convenient Additions..... Includes a rear-mounted kickstand for easy parking and alloy platform pedals for secure footing. Illuminate your path with the powerful 48V LED front light (80 LUX) and rear blinking light, enhancing visibility in low-light conditions.
