Pony Step Thru

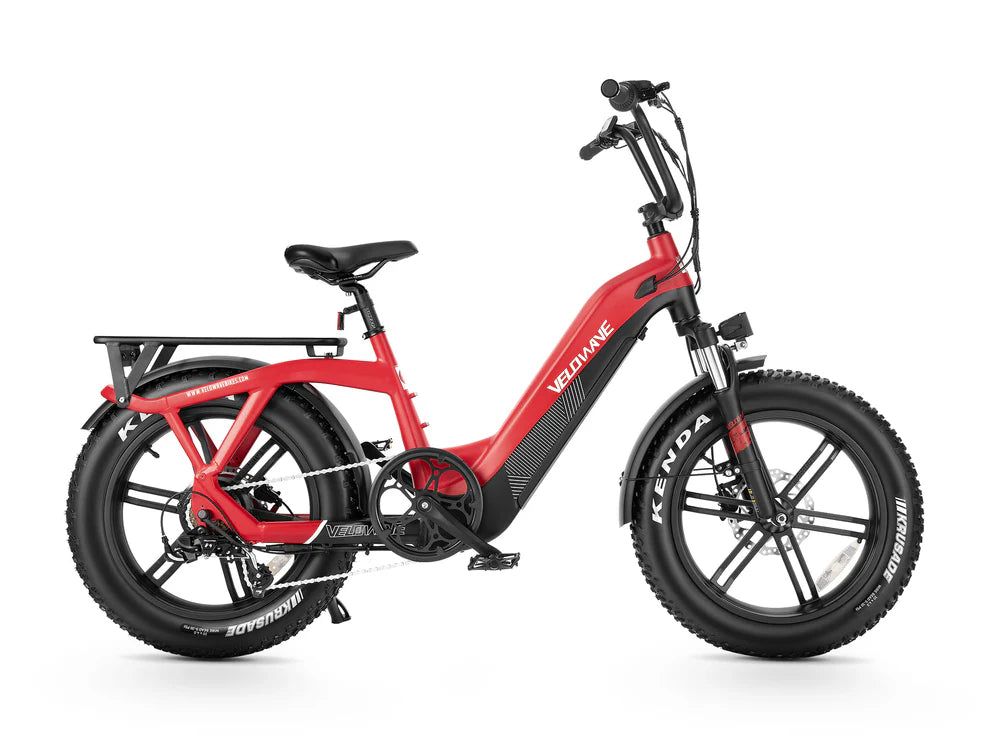

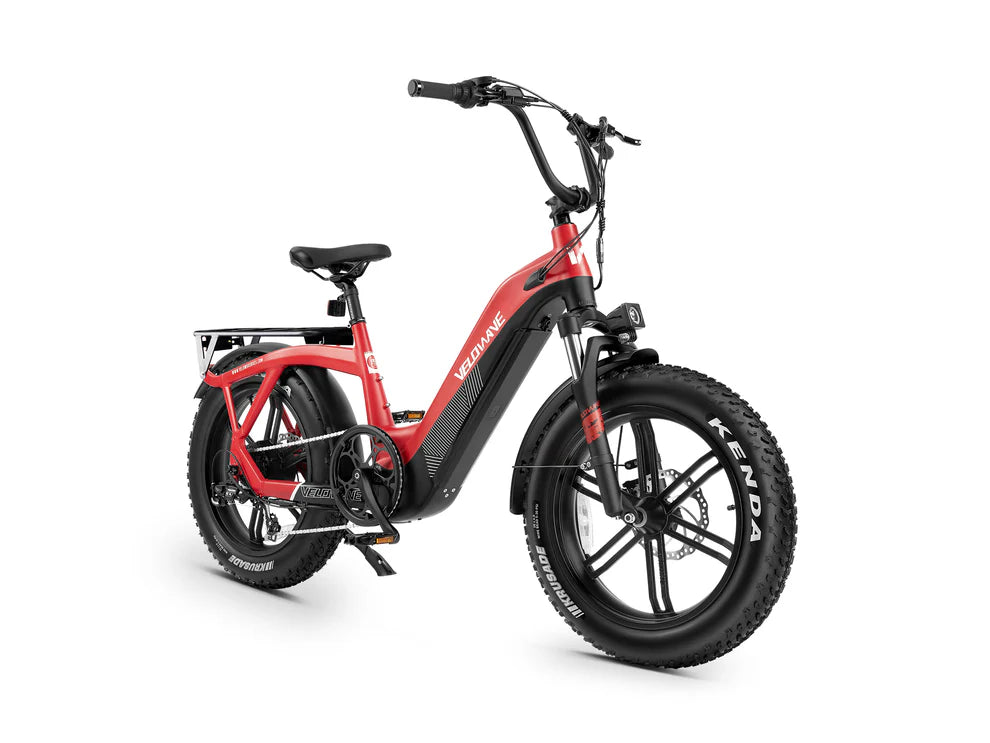

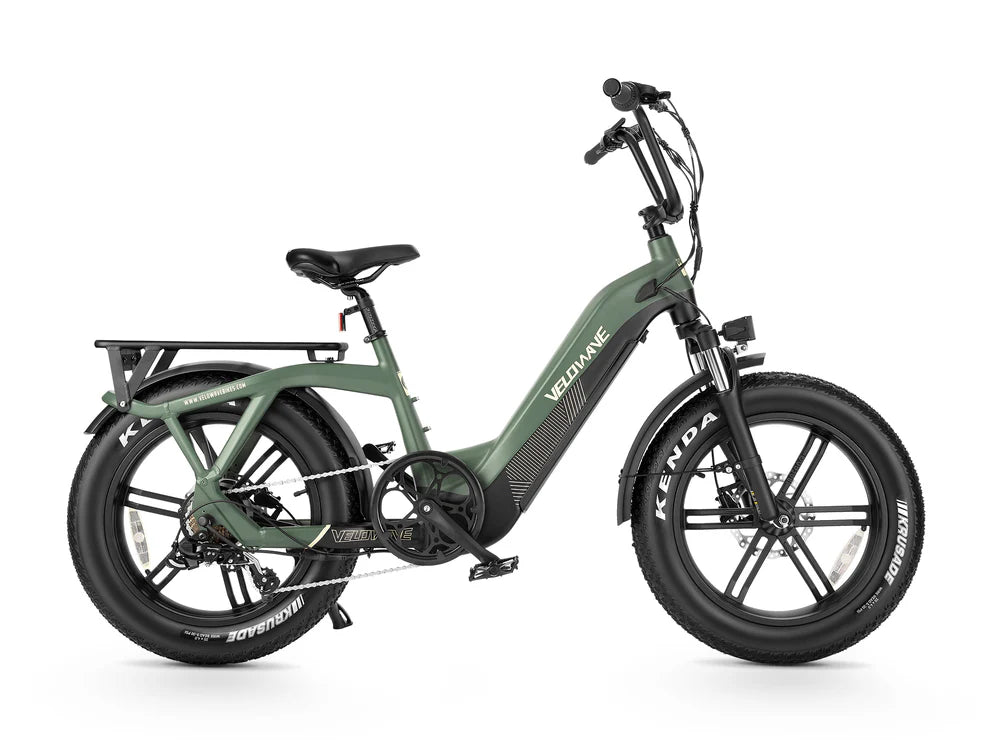

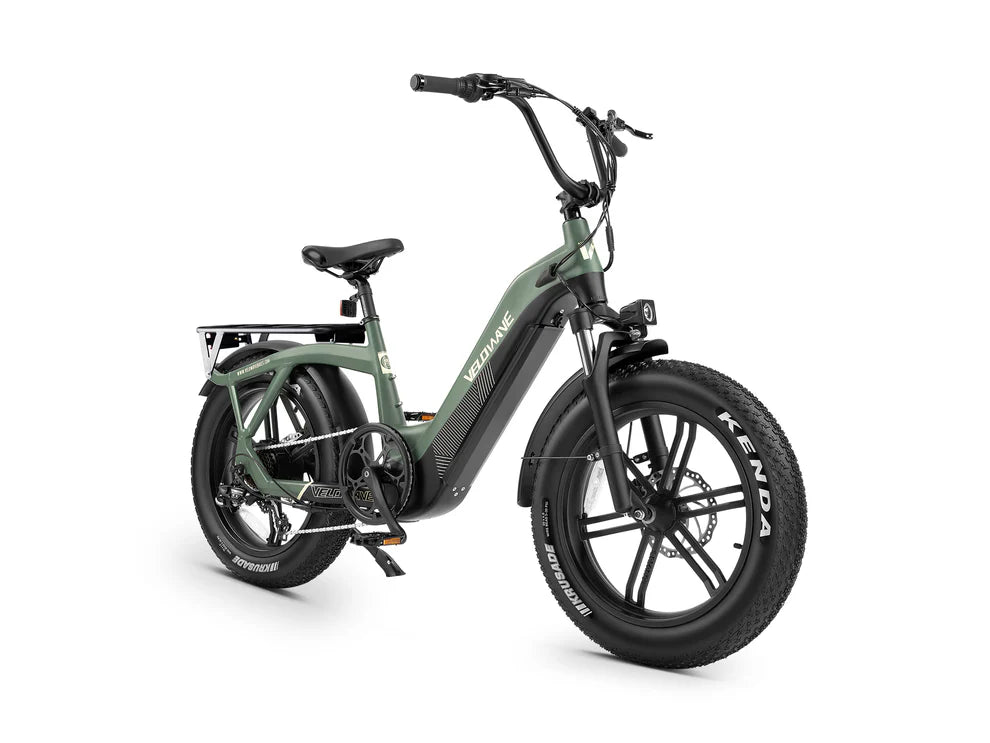

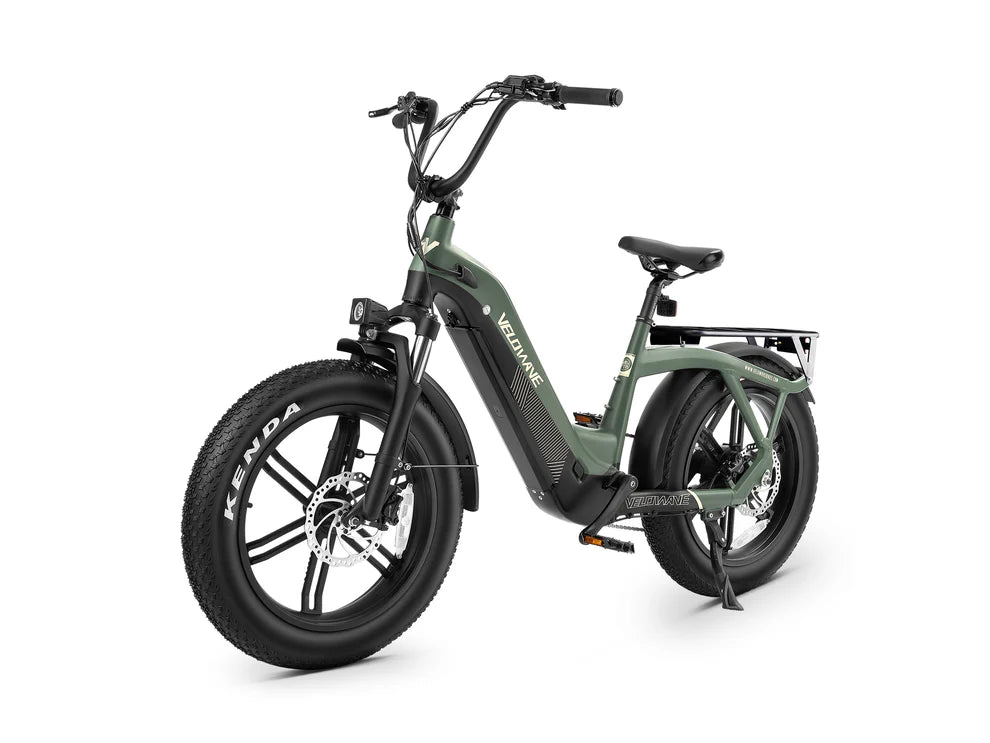

The Velowave Pony Compact Step-Thru Electric Bike is a powerful fat tire ebike built for adventure and daily commuting. With a step-thru frame for easy access, a 750-watt electric bike motor for speed and stability, and 20”x4” fat tires for superior grip, it’s ready for any terrain. Its 48V/15Ah LG battery provides up to 40 miles per charge, making it the perfect adventure ebike for city streets and off-road trails alike.

Frame Size Standard (mm)
Handlebar Height 1130mm
Reach 440mm
Head Tube Length 173mm
Seat Tube Length 349mm
Standover Height 670mm
Wheelbase 1131mm
Total Length 1715mm
Seat Height Min/Max 775/990mm



General

  • Classes: Class 2(Ebikes can go up to 25mph with pedal assistance)
  • Max Speed: 25MPH by pedal, 20MPH by throttle
  • Range: Avg. 40 Miles* on PAS, up to 40 Miles on Level 1, 23 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)

Frameset

  • Frame: 6061 Aluminium, Removable Battery, Internal Routing
  • Fork: Hydraulic Suspension Fork
  • Fenders: Included

Wheels

  • Rim Material: Aluminum
  • Rim Size: 20 x 3.0
  • Rim Type: Wheel with Integral Hub
  • Tire: Kenda Fat Tires
  • Tire Size: 20" x 4.0"

E-system

  • Battery: 48V 15Ah, 720Wh, LG 21700 Cells
  • Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
  • Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
  • Controller: 48V 25A Peak
  • Display: Multifunctional Color-Screen Display
  • Pedal Assist: Speed Sensor
  • Throttle: Thumb Throttle
  • Front Light: 48V 10W LED Light

Drivetrain

  • Shifter: Shimano, 7-Speed
  • Rear Derailleur: Shimano, Long Cage
  • Crank & Chainring:52T, 170mm Alloy Crank
  • Freewheel: 7-Speed
  • Pedal: Alloy Platform Pedals

Components

  • Saddle: Comfortable Wide Saddle
  • Handlebar: Alloy, 750mm width
  • Grips: Nylon Lock-on
  • Brake: Front & Rear Hydraulic Disc Brakes
  • Brake rotor: 180mm, 1.9mm thick
  • Kickstand: Side Kickstand
  • Seatpost: Forged Alloy, Ø30.4*350mm
  • Stem: Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
  • Handlebar: Aluminum Ø31.8mm, Width 710mm

Weight

  • Net Weight: 36kg(79.4lb)
  • Gross Weight: 45.6kg(100.5lb)
  • Battery Weight: 4.2kg(9.3lb)
  • Weight limit: 150kg(330lb) Payload Capacity

Size

  • Product Size: 1720x1130x750mm
  • Packing Size: 1450x320x800mm

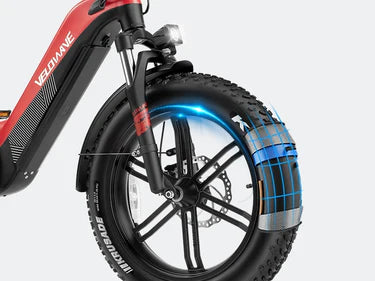

Fat Tire Design.....The 20”x4.0” Kenda Fat Tires provide superior traction and stability, making this fat tire ebike suitable for sand, snow, gravel, and rough trails.

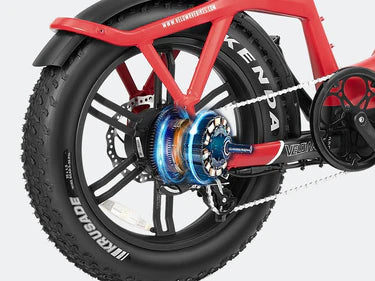

750W BAFANG Motor.....This 750-watt electric bike is equipped with a high-speed BAFANG geared motor, ensuring powerful acceleration and a smooth ride at peak speeds.

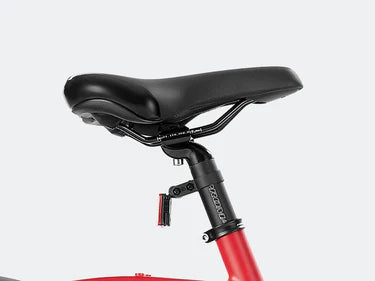

Comfortable Wide Saddle.....Featuring a widened and enlarged seat pad for enhanced comfort during long rides, focusing on every detail for an enjoyable riding experience.

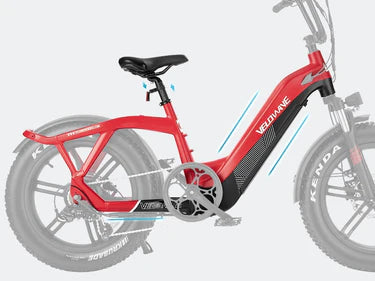

Durable Aluminum Frame.....Built with aerospace-grade aluminum, this adventure ebike balances durability and a lightweight structure, offering a sleek yet strong frame.

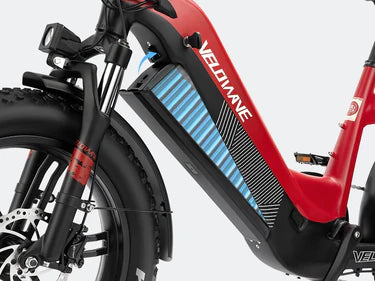

Long-lasting Battery.....The 48V/15AH LG lithium battery delivers a range of up to 40 miles per full charge, supporting fast charging, perfect for long-distance rides.

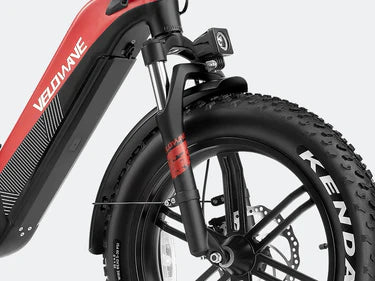

Front Suspension.....Reduces frame vibration on rough roads, enhancing stability, comfort, and control, ensuring a safer and more enjoyable riding experience.

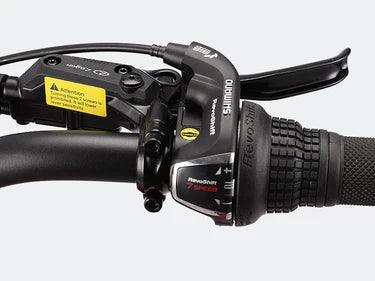

Shimano Drivetrain.....Smooth-shifting Shimano 7-speed drivetrain for seamless adjustment of riding speed across different terrains and conditions.

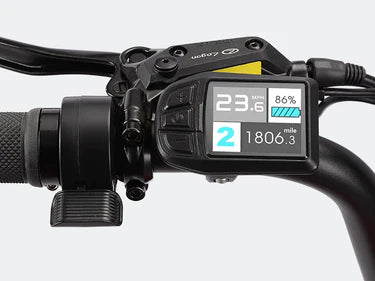

Smart Display.....Features front and rear hydraulic disc brake system for smooth braking in any condition, along with essential ride data including assist level, battery indicator, riding speed, and mileage.

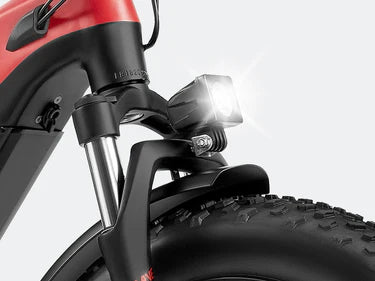

Bright Headlight.....Equipped with a bright 48V 10W LED headlight for enhanced safety during night rides, ensuring visibility and ease of riding day and night.
