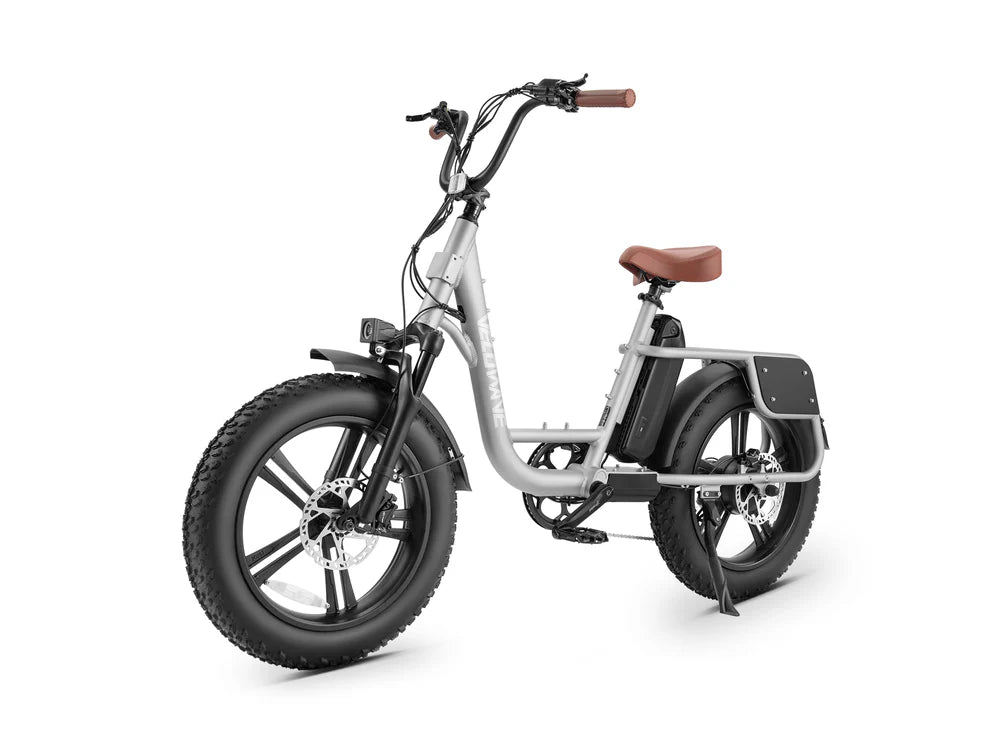

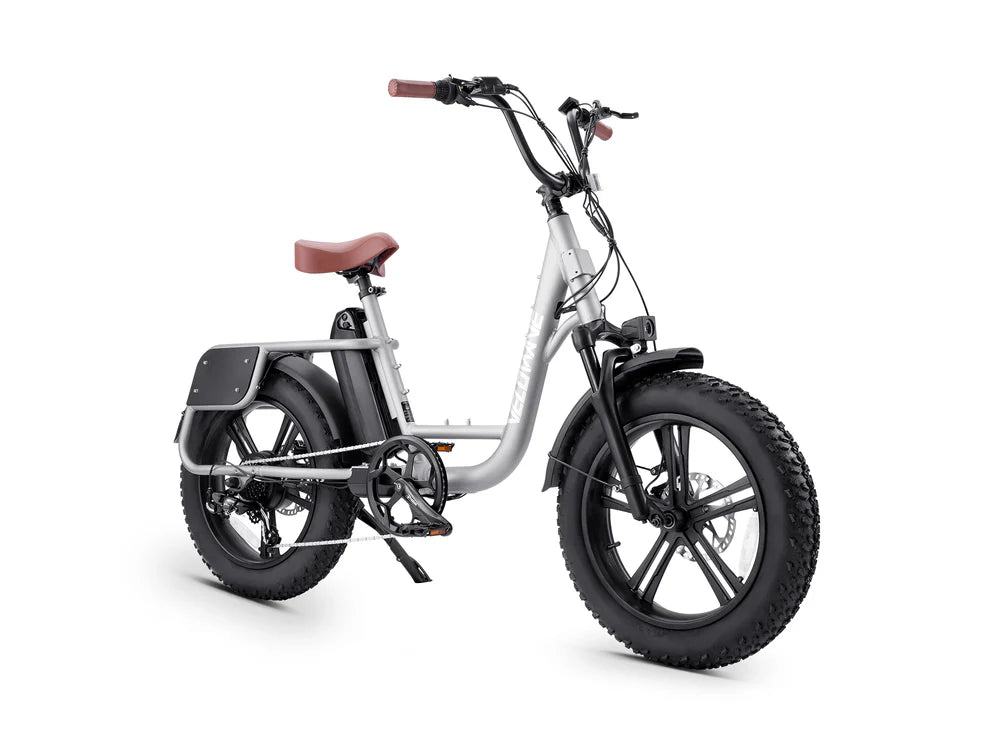

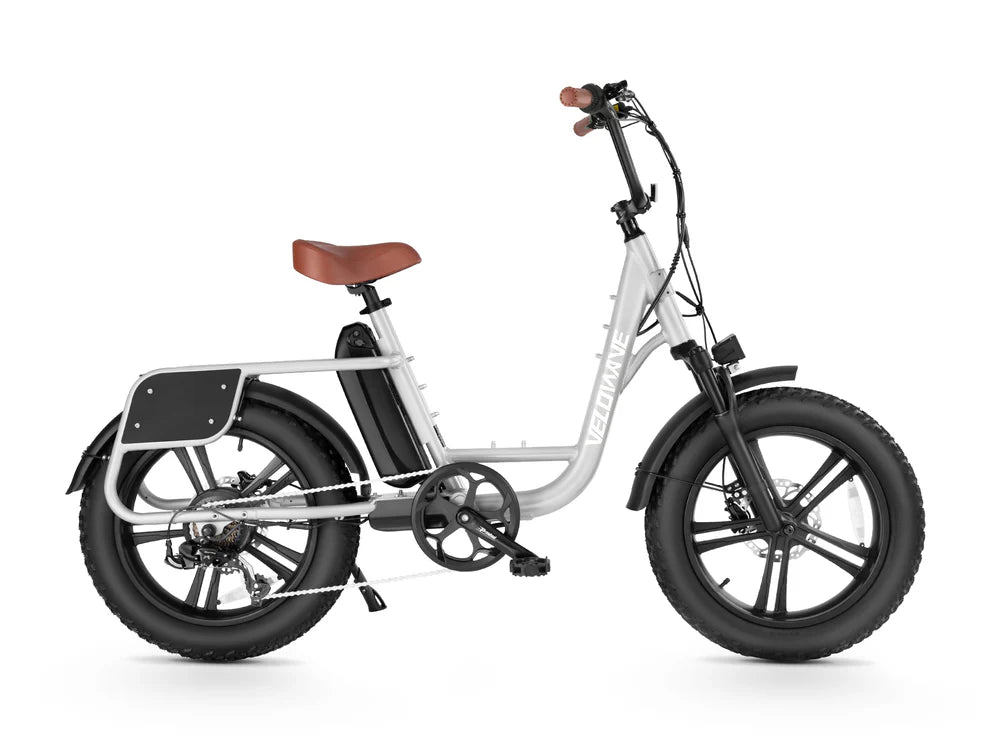

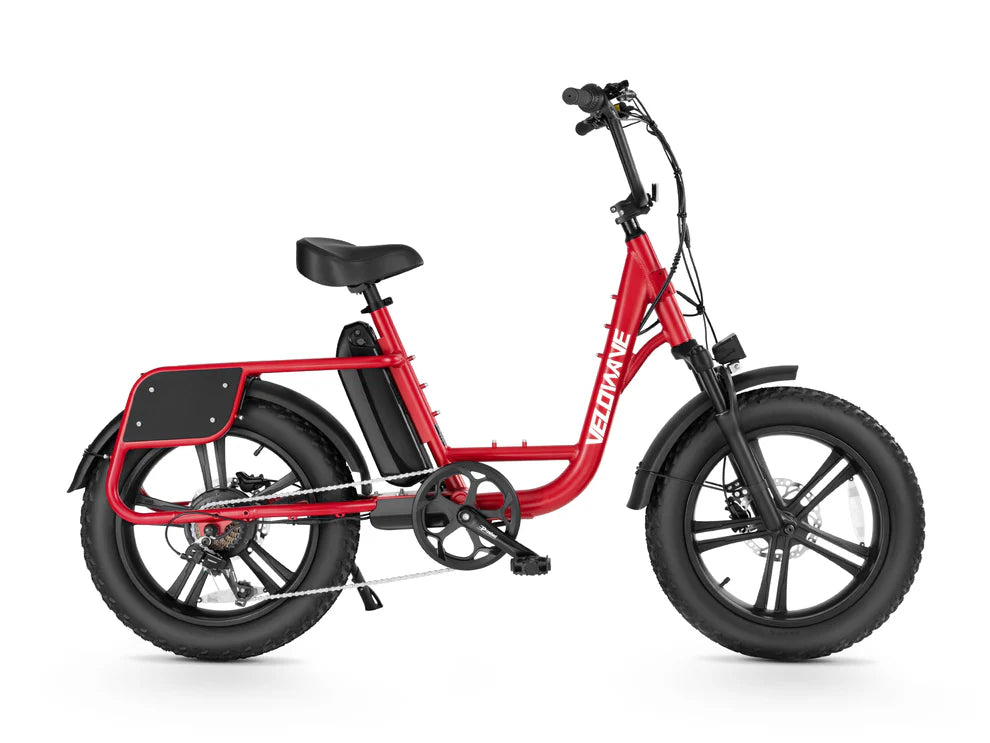

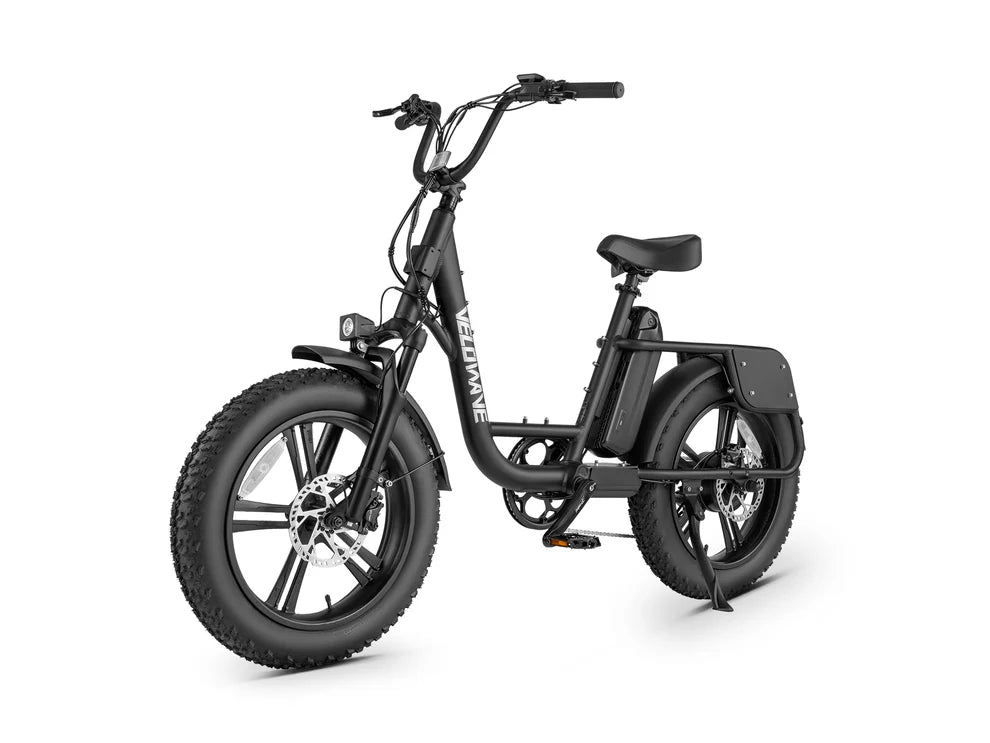

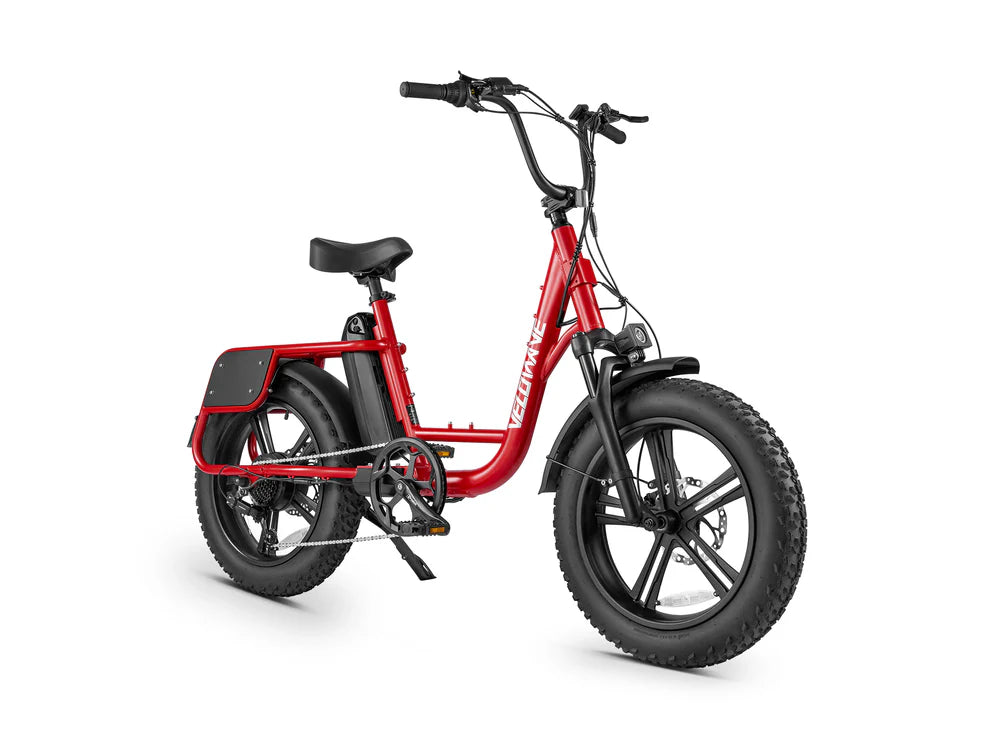

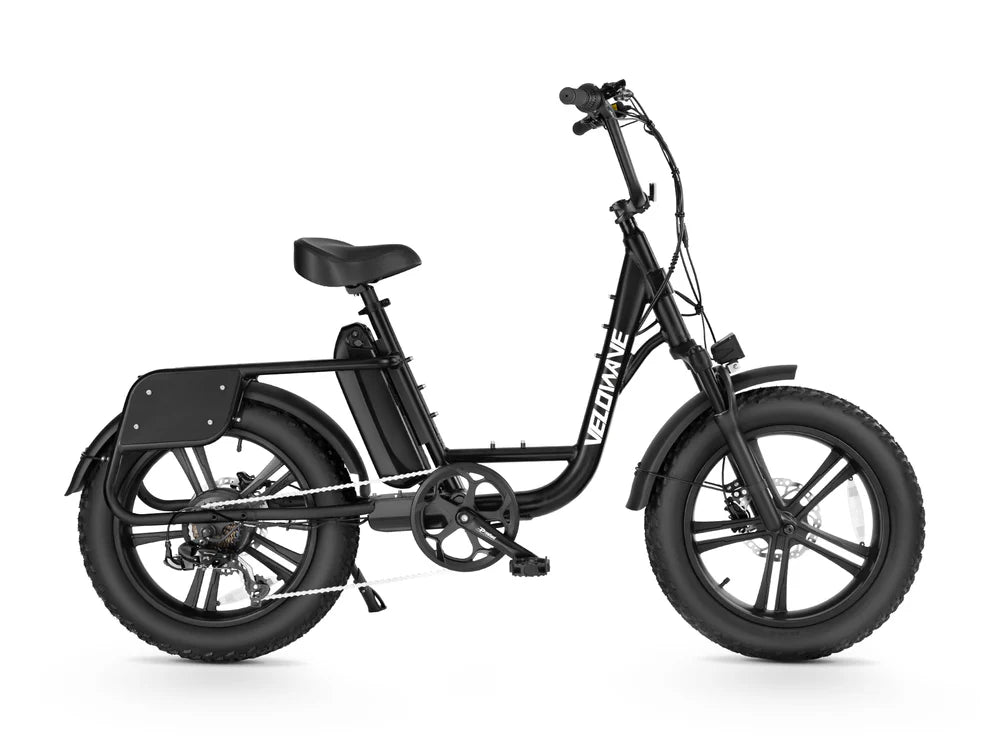

Prado S Step Thru

The Prado E-Bike is designed with city and commuter riders in mind. Its large handlebar provides added comfort during your ride while its mudguards keep you clean on any terrain. Elevate your daily commute experience with Prado, which can travel up to 40 miles per charge - making it the ultimate partner for all your riding needs!



Frame Size Standard (mm)
Handlebar Height 1190mm
Reach 370mm
Head Tube Length 240mm
Seat Tube Length 480mm
Standover Height 755mm
Wheelbase 1170mm
Total Length 1970mm
Seat Height Min/Max 840/1050mm



General

  • Classes: Class 2(Ebikes can go up to 25mph with pedal assistance)
  • Max Speed: 25MPH by pedal, 20MPH by throttle
  • Range: Avg. 40 Miles* on PAS, up to 40 Miles on Level 1, 23 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)

Frameset

  • Frame: 6061 Aluminium, Removable Battery, Internal Routing, Rear Rack Integrated with Frame
  • Fork: Hydralic Suspension Fork
  • Fenders: Included

Wheels

  • Rim Material: Aluminum
  • Rim Size: 20 x 3.0
  • Rim Type: Wheel with Integral Hub
  • Tire: Kenda Fat Tires
  • Tire Size: 20" x 4.0"

E-system

  • Battery: 48V 15Ah, 720Wh, LG 21700 Cells
  • Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
  • Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 55NM
  • Controller: 48V 25A Peak
  • Display: Multifunctional Color-Screen Display
  • Pedal Assist: Cadence Sensor
  • Throttle: Thumb Throttle
  • Front Light: 48V 10W LED Light

Drivetrain

  • Shifter: Shimano, 7-Speed
  • Rear Derailleur: Shimano, Long Cage
  • Crank & Chainring: 52T, 160mm Alloy Crank
  • Freewheel: 7-Speed
  • Pedal: Alloy Platform Pedals

Components

  • Saddle: Comfortable Wide Saddle
  • Handlebar: Alloy, 730mm width
  • Grips: Nylon Lock-on
  • Brake: Front & Rear Hydralic Disc Brakes
  • Brake rotor: 180mm, 1.9mm thick
  • Kickstand: Side Kickstand
  • Seatpost: Forged Alloy, ∅31.6*350mm
  • Stem:Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
  • Handlebar:Aluminum ∅31.8mm,Width 710mm

Weight

  • Net Weight: 35kg(77.2lb)
  • Gross Weight: 46kg(101.4lb)
  • Battery Weight: 3.5kg(7.7lb)
  • Weight limit:150 kg (330 lb) Payload Capacity

Size

  • Product Size: 1790x730x1190mm
  • Packing Size: 1530x320x860mm

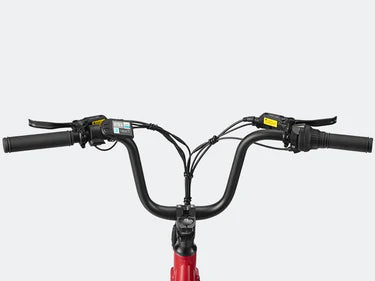

Comfortable Handlebar..... Swept-back bars provide a comfortable and upright posture, ideal for commuters. The internal bar can also serve as a bracket.

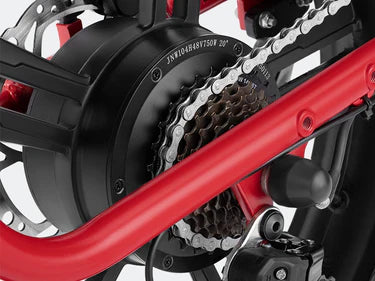

750W BAFANG Motor..... Powerful motor providing stable electric power, effortlessly cruising and handling hills with ease.

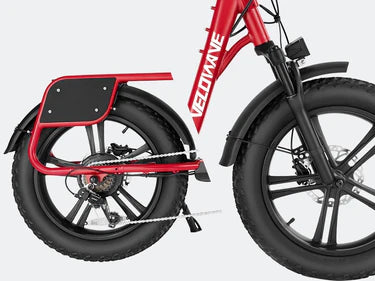

Fender Design..... Includes mudguards to protect against mud and dirt, prolonging the bike's lifespan.

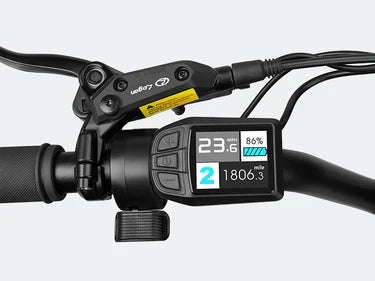

Throttle & Display..... Provides power assist level, battery indicator, riding speed, and mileage data for better control and exercise results.

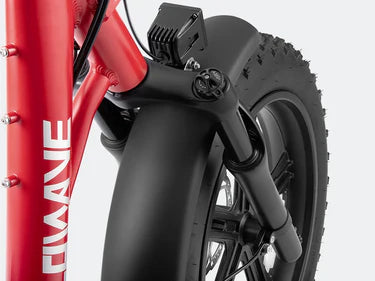

Front Suspension..... Reduces frame vibration on rough roads for a stable, comfortable, and safer ride.

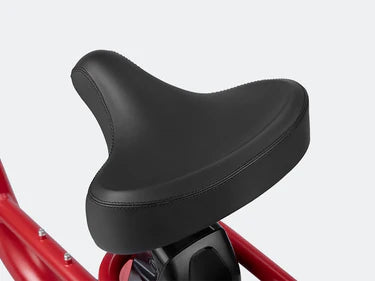

Comfortable Cushion..... Featuring a widened and enlarged seat pad for enhanced comfort during rides.

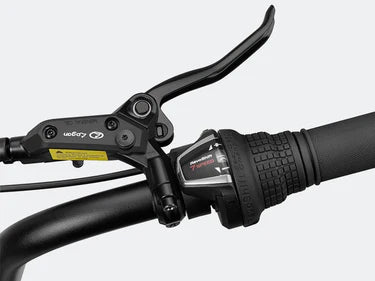

Convenient Control..... Efficient braking system suitable for riders of all strengths, ensuring easy and safe stops.

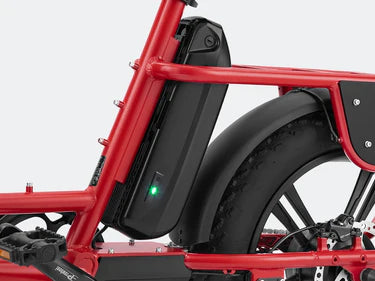

High-Capacity Battery..... Equipped with a 48V/15AH lithium battery from LG, providing a range of up to 40 miles per full charge with fast charging capability.

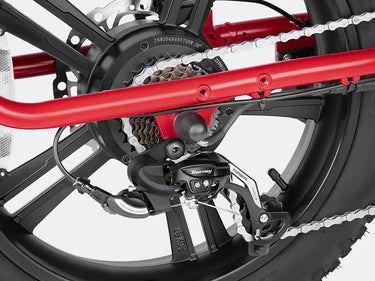

Shimano Drivetrain..... Smooth 7-speed drivetrain for seamless shifting and speed adjustment in different conditions.
