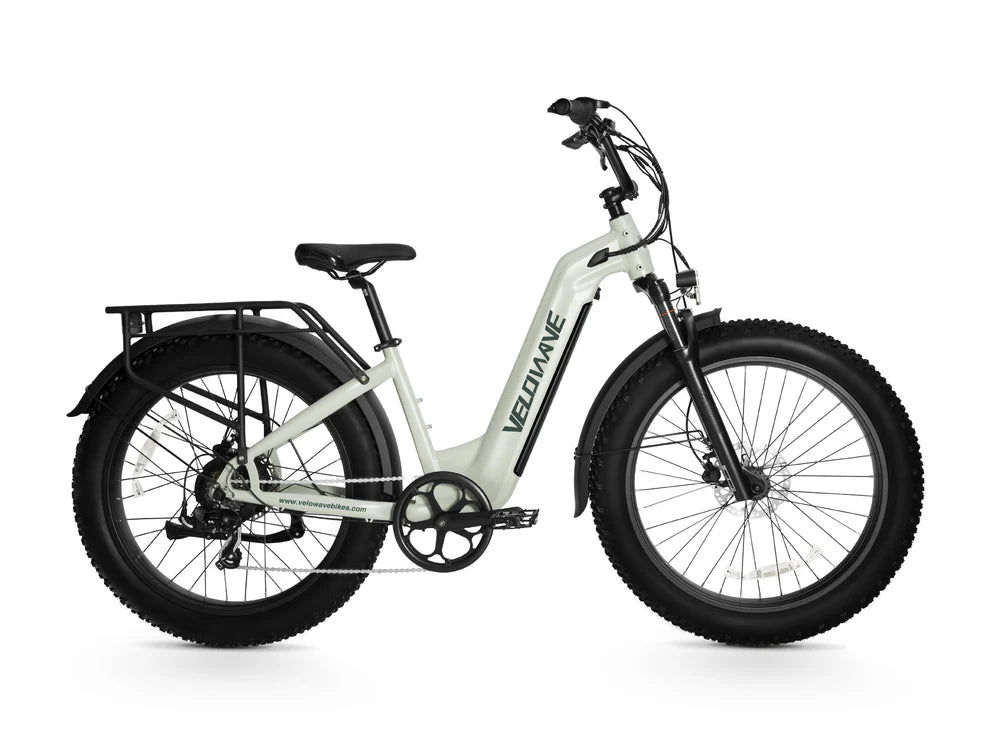

Velowave-Ranger 2.0 Fat Tire All Terrain Step Thru eBike

Sale price$1,099.00

Color:

✓ Authorized Velowave Dealer
✓ Full Manufacturer Warranty
✓ Fast Direct Shipping
✓ Free Ground Shipping Over $99
✓ No Sales Tax Outside NC

Secure Payment Options

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Velowave-Ranger 2.0 Fat Tire All Terrain Step Thru eBike
Velowave-Ranger 2.0 Fat Tire All Terrain Step Thru eBike Sale price$1,099.00

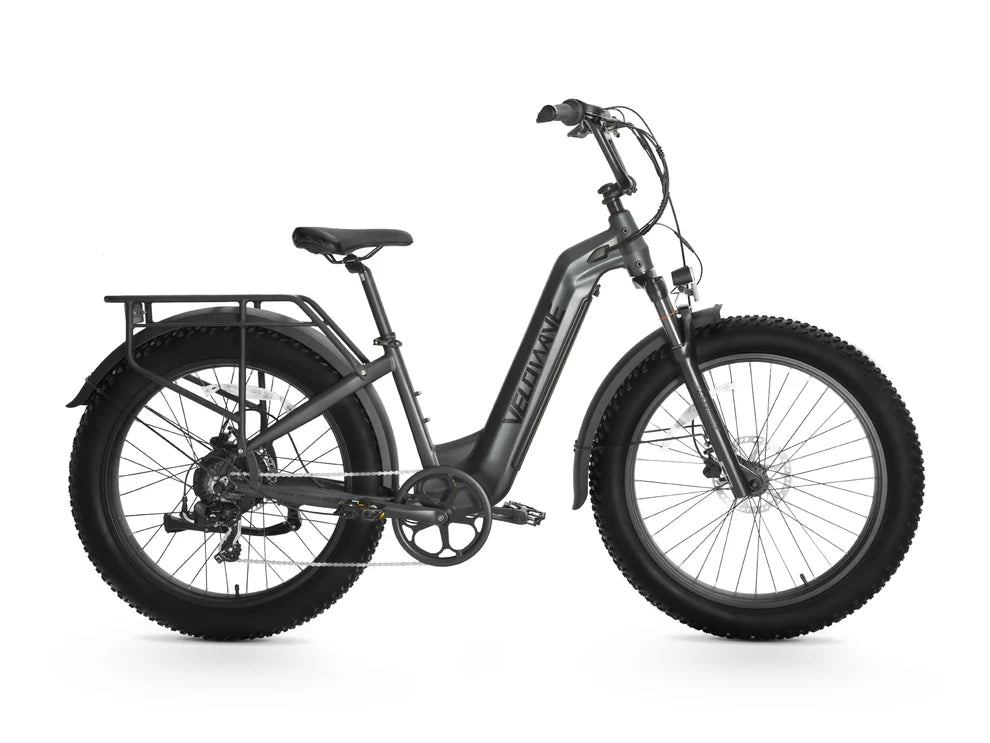

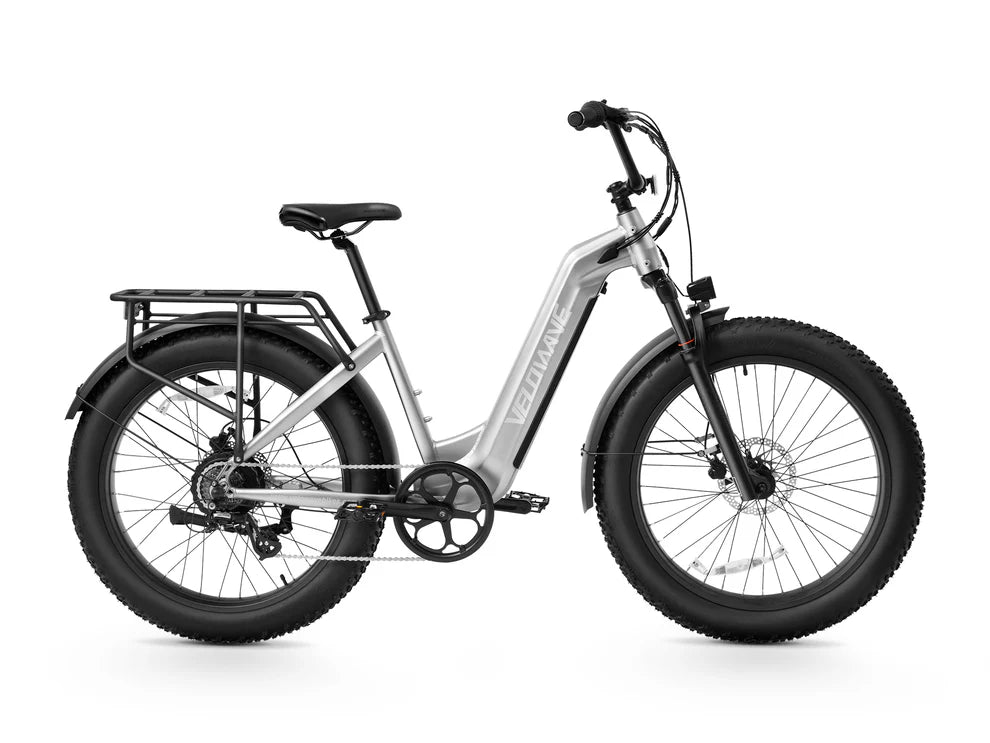

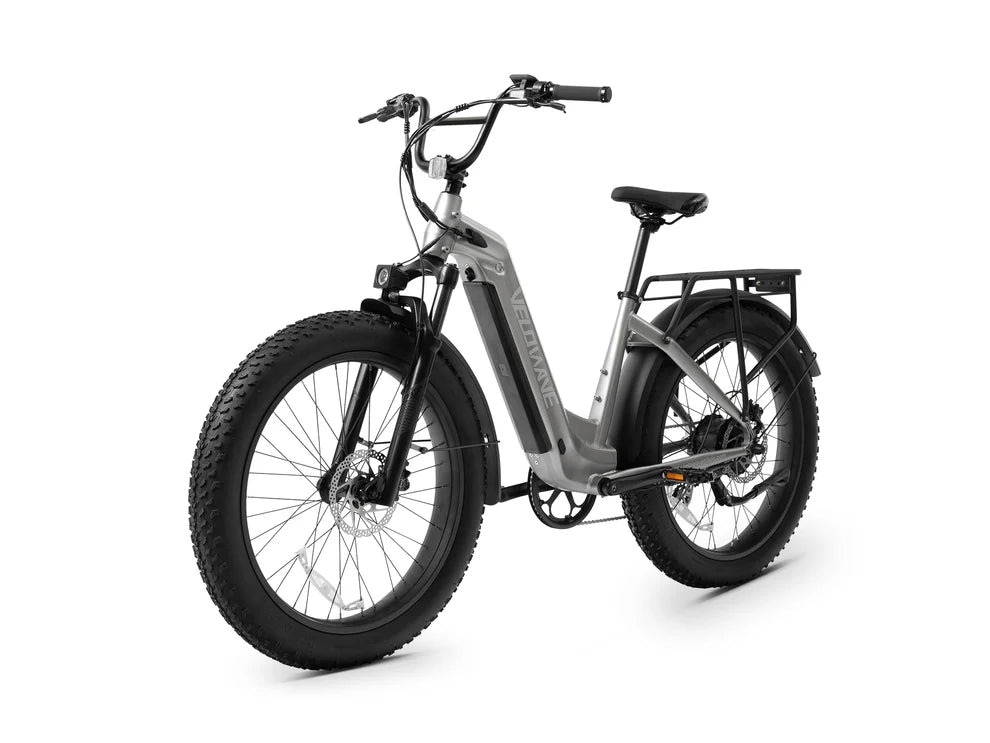

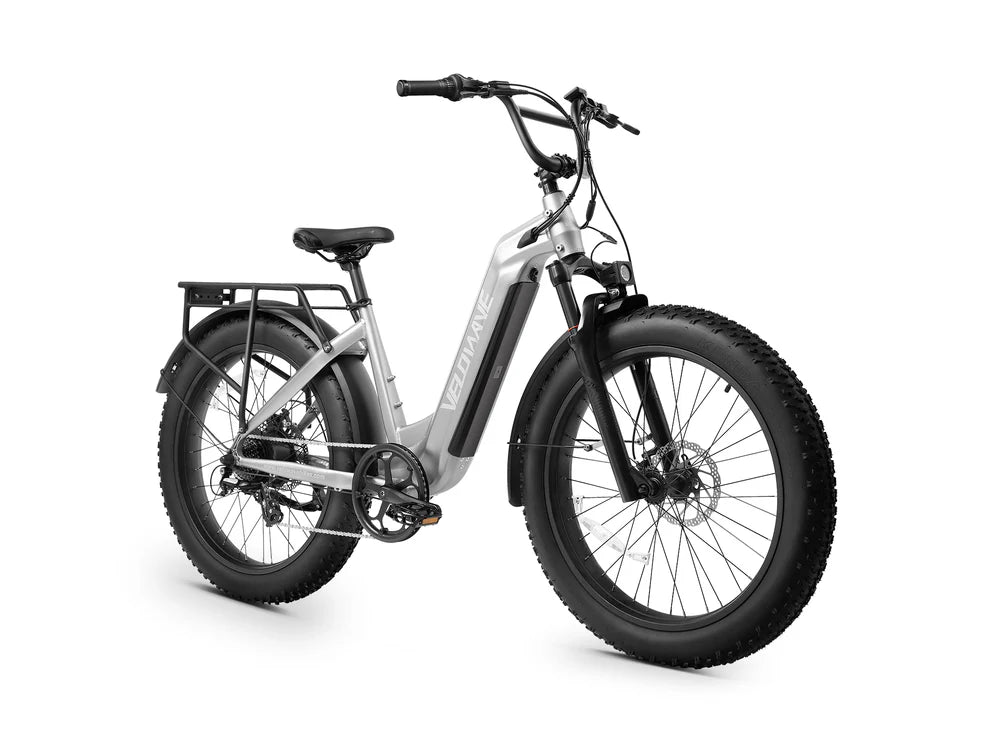

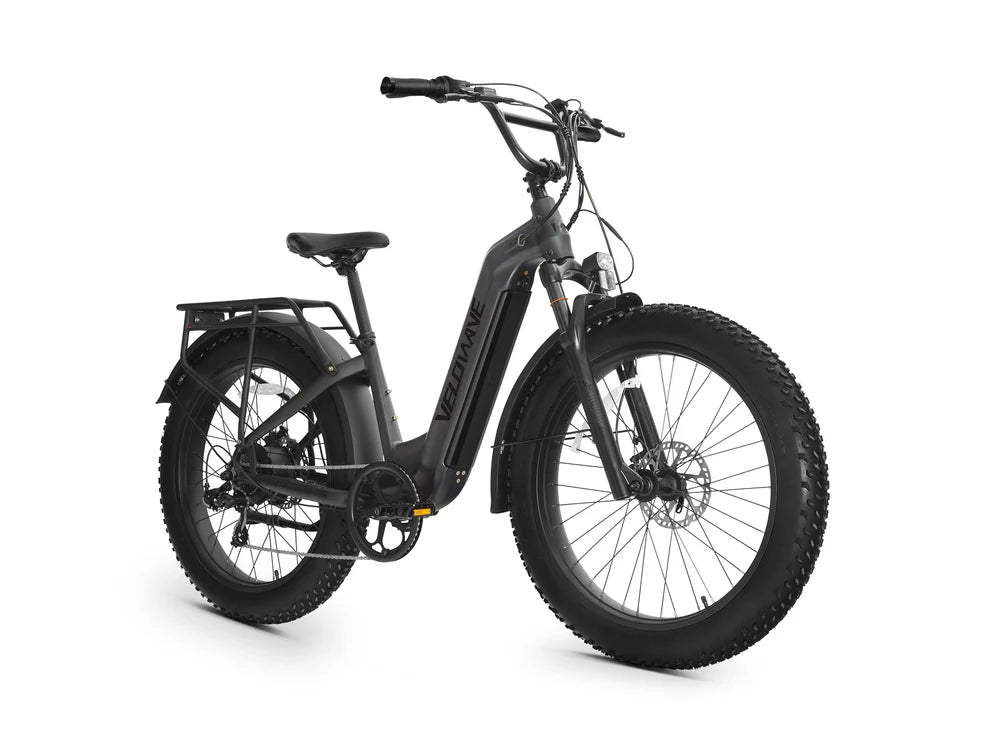

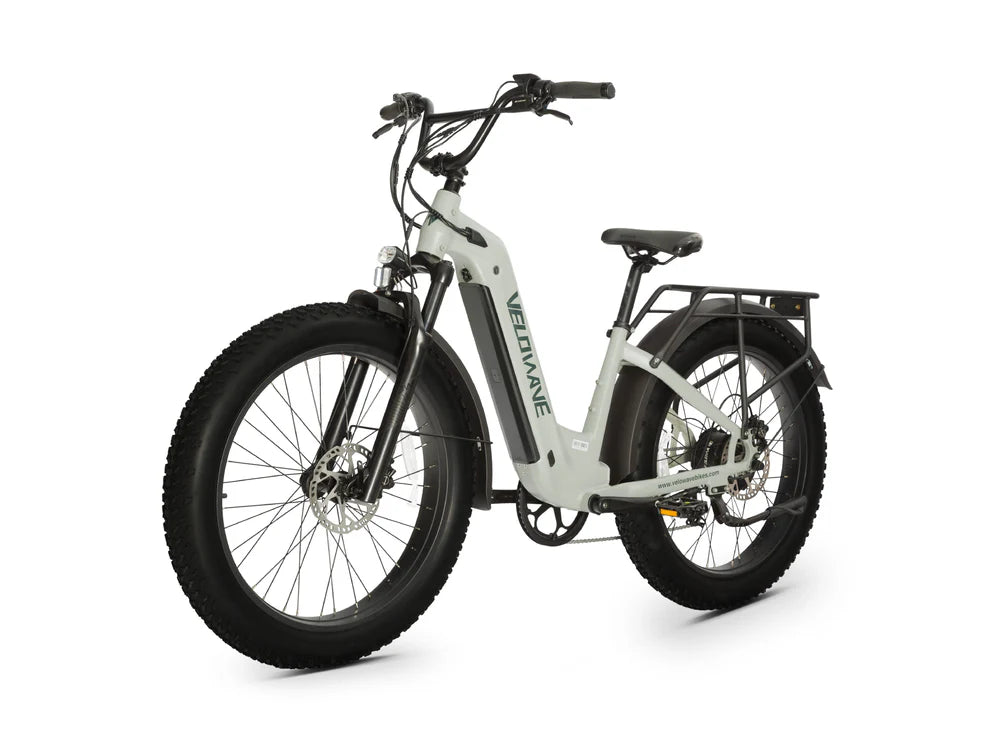

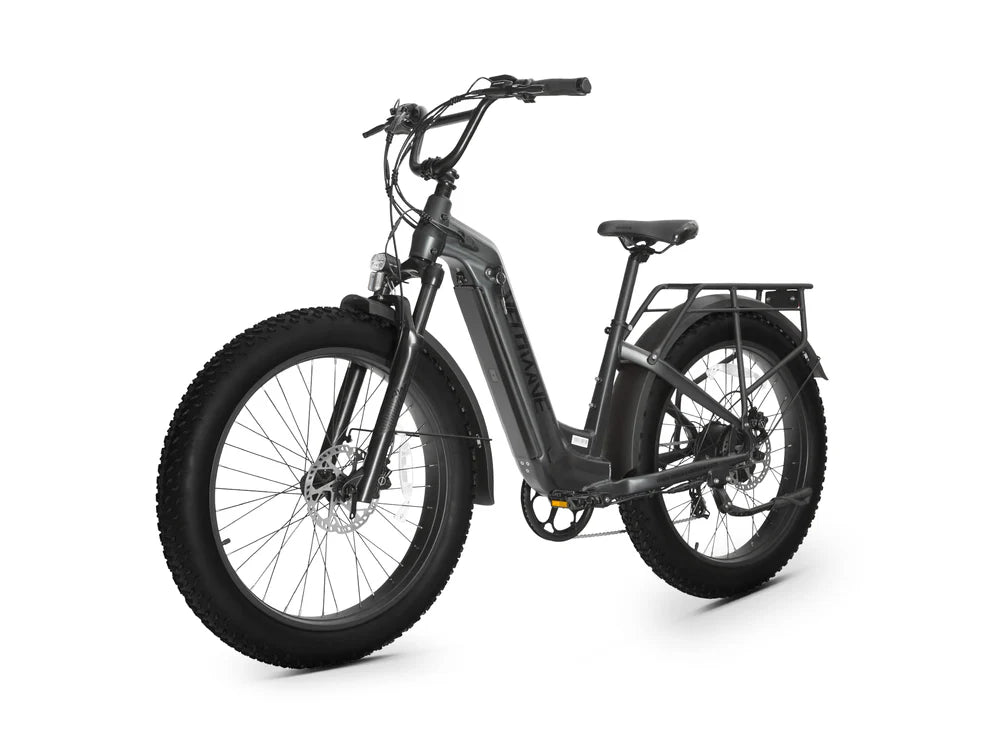

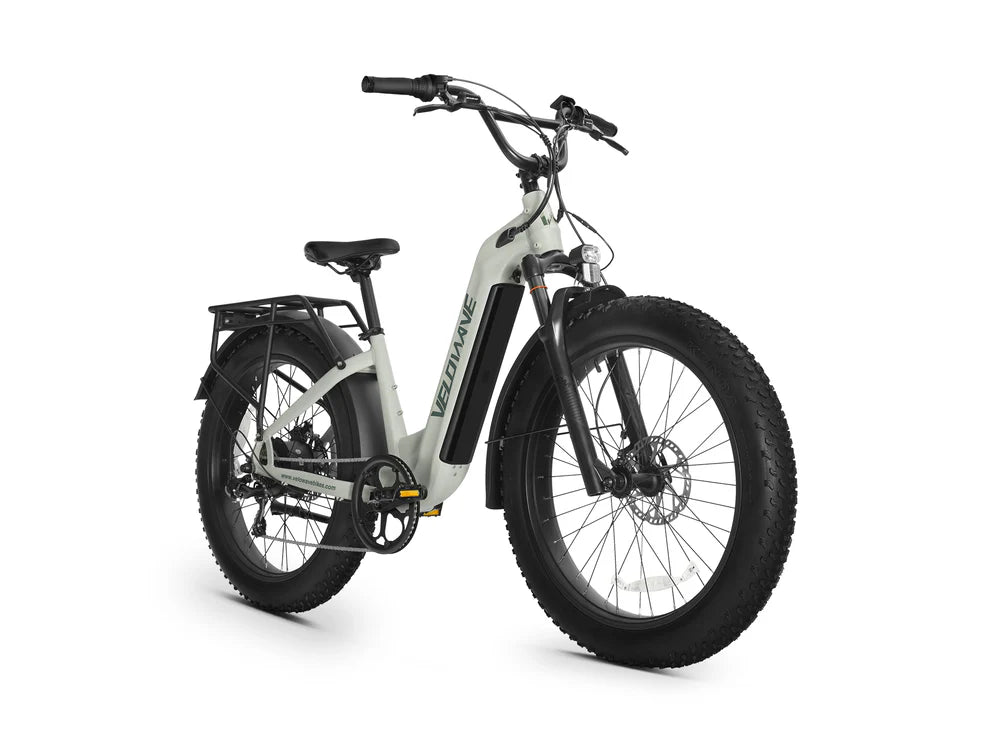

Ranger Step-Thru 2.0

Blending power, speed and convenience. The ranger step-through offers a top speed of 28 MPH with a dynamic 750W geared hub motor, powered by a removable 48V 15AH LG battery for an extended and adaptable ride covering 30 miles on a single charge, and up to 90 miles by pedal. Roll smoothly on sturdy 4" fat tires offering superior traction and stability on any terrain.

The step-through frame enhances accessibility making it an inclusive choice for a wide range of individuals. With a robust payload capacity of 300lbs.

Featuring a complimentary rear rack and fenders – all included with no extra cost !

Frame Size Standard (mm)
Handlebar Height 1206mm
Reach 402mm
Head Tube Length 140mm
Seat Tube Length 17.8"
Standover Height 705mm
Wheelbase 1172mm
Total Length 1922mm
Seat Height Min/Max 819/1009mm



General

  • Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
  • Max Speed: 28MPH by pedal, 20MPH by throttle
  • Range: up to 90 Miles by Pedal; 30+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
  • Pedal Assist: 5 Levels

Frameset

  • Frame: 6061 Aluminium, Removable Battery, Internal Routing
  • Fork: Hydraulic Suspension Fork with 60mm travel, with lockout

Wheels

  • Rim Material: Aluminum
  • Rim Size: 26" 36H Front & Rear
  • Front Wheel Spokes: 13G x 244/246mm, Black Stainless
  • Rear Wheel Spokes: 12G x 217/219mm, Black Stainless
  • Tubes: Butyl Rubber, Schrader Valve
  • Hubs: Disc Nutted Front /Rear Axles
  • Tire: Kenda Fat Tires
  • Tire Size: 26" x 4.0"

E-system

  • Battery: Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
  • Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
  • Motor: Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
  • Controller: 48V 25A Peak
  • Display: Multifunctional Color-Screen Display
  • Pedal Assist: Cadence Sensor
  • Throttle: Thumb Throttle
  • Front Light: 48V 10W LED Light, 30 LUX

Drivetrain

  • Shifter: Shimano 7-Speed RevoShift
  • Rear Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
  • Crank & Chainring: 52T, 170mm Alloy Crank
  • Freewheel: Shimano 14-28T, 7-Speed freewheel
  • Pedal: Alloy Platform Pedals
  • Chain: KMC 124 Link, 7-Speed

Components

  • Saddle: Comfortable Wide Saddle
  • Seatpost: Forged Alloy, Ø30.4*350mm
  • Seat Clamp: Ø35mm Quick Release
  • Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
  • Handlebar: Aluminum Ø31.8mm, Width 720mm
  • Headset: Sealed Bearing Headset
  • Grips: Nylon Lock-on, Ergonomic Comfort
  • Brake: Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
  • Brake rotor: 180mm, 1.9mm thick
  • Kickstand: Side Kickstand, Alloy, Rear Mount
  • Fenders: Plastic 26"x110mm
  • Rear Rack: Aluminum Alloy Rear Rack

Weight

  • Net Weight: 34.9kg (76.94lb)  ( including battery)
  • Gross Weight: 45.6kg (100.53lb)
  • Battery Weight: 4kg (8.82lb)
  • Weight limit: 136 kg (300 lb) Payload Capacity

Size

  • Product Size: 1930x740x1210mm
  • Packing Size: 1570x330x900mm
  • Recommended Rider Height: 5’5"- 6’5" (165 - 192cm)
  • Motor: 750W
  • Top Speed: 28 MPH
  • Tire: 4.0” Fat Tires
  • Battery: 48V 15AH
  • Avg. Range: 65 Miles
  • PayLoad Capacity: 300 lbs

Same specs as the step-over but with easy step-through access - great for riders who want all-terrain capability without the high crossbar!

Openairlifestyles.com honors all manufacturers warranties. This ebike comes with a 2 year limited warranty from Velowave eBikes.

Velowave eBikes take great pride in the quality and durability of their products. Every eBike we sell is backed by a limited warranty against manufacturing defects, ensuring peace of mind with your purchase. This document elaborates on the details of the warranty plan, including coverage information, claim application guidelines, cancellation policies, etc.

Initial Warranty Period

Velowave eBikes provides a two-year initial warranty service for your eBike. Within these two years, if the eBike fails to function properly due to material or workmanship defects, they will provide repair or replacement services for you by the provisions of this plan.

Covered Products

  • This warranty applies only to products, parts, and components (hereafter PRODUCTS) that have been manufactured, assembled, or sold in new condition by Velowave Bikes.
  • This warranty applies only to replacement repair of PRODUCTS in case of a manufacturing flaw in materials or workmanship, in accordance with the Scope of Warranty Service, and subject to any and all exclusions, limitations, and procedures explained below.
  • This warranty is not transferable in any way and may not be exercised by anyone other than the original retail buyer (hereafter BUYER) of the PRODUCTS, only if the BUYER has retained constant ownership of the PRODUCTS since their original purchase of the PRODUCTS and only to PRODUCTS purchased in new condition either.

Warranty Period: 2 Years

  • Battery packs are covered for a 2-year Warranty from the date of original retail purchase or up to 300 charging cycles, whichever occurs first. The batteries are designed to retain up to 75% of their original capacity during that time.
  • Other electronic components including the motor, controller, display, charger, and throttle are covered under a 2-year warranty from the date of purchase.
  • Bicycle frames are covered by a 2-year warranty against manufacturing defects.
  • Mechanical components are covered by a 1-year warranty against manufacturing defects.
  • For all PRODUCTS, this warranty period is counted from the date the products were delivered to the BUYER unless excluded from warranty or otherwise voided from coverage under warranty.
  • New eBike Guarantee - Velowave eBike offers full replacement of defective parts with free shipping within the first 30 days of your bike order. After 30 days the customer is responsible for all return shipment costs to Velowave.

Apart from manufacturing defects that could be present, parts that wear due to normal use are listed:

  • Bearings
  • Brake Pads
  • Chains
  • Free Hub Bodies
  • Handlebar Grips
  • Rubber moving parts
  • Shifter, brake cables and casings
  • Spokes
  • Sprockets
  • Stripped threads/bolts
  • Tools
  • Transmission gears

and are not included in the warranty but may be replaced on a case-by-case basis within the first 60 days. Velowave eBikes shall not be liable if you install, operate, clean, or maintain your ebike without following the owners' manual instructions. Misuse, abuse, alteration, and natural disasters are not included in this warranty.

Extended Warranty Period

If you wish to continue enjoying the warranty service after the initial two-year warranty period, you can choose to extend the warranty term.
The extended warranty period takes effect from the end date of the initial warranty period. The
specific coverage scope is the same as that of the initial warranty period, but it is subject to the
various terms and conditions stipulated in this document.

You can typically expect your eBike to be delivered by Fedex, UPS, or USPS and arrive within 5-7 business days, depending on your location and product availability. The ebike will be packaged in a large shipping box. See our Shipping Policy for more info.

At openairlifestyles.com, we want your shopping experience to be simple and worry free. If something isn’t quite right, our return and refund process is designed to be clear, fair, and hassle free.

Occasionally mishaps may occur. We believe all issues can be resolved fairly, if given a chance. If you have any concerns that need corrected, please contact us to discuss and we will work together to resolve them.

Returns:

  • You may return most items within 30 days of the delivery date.
  • Unfortunately, we are unable to accept returns submitted after 30 days.
  • If the item is defective or incorrect, we’ll get the item back and either replace it or issue a refund.
  • Changed your mind, no problem, any returns for unused items in original packaging are accepted within 30 days. You’ll be responsible for the shipping both ways. Once we receive and inspect the returned item and everything is in the same condition as when shipped, we’ll issue a refund for the product (minus any shipping fees).
  • If your item arrives broken, malfunctioning, or with missing parts, please contact us within 30 days of delivery. We’ll arrange a return, resend missing parts, or make it right at no cost to you. Please contact us ASAP and provide the order information and any pictures so we can understand what is going on. Once the item is shipped back and inspected, we’ll either send a replacement or issue a refund.
  • Once your return is received and approved, we’ll notify you via email. Refunds are typically issued to your original payment method within 3-4 business days.
    Please note: Your bank or card provider may take additional time to post the refund. If you haven’t received your refund after 7 business days, feel free to contact us at support@openairlifestyles.com.

Restocking Fees:

  • Some returns may be subject to a restocking fee, depending on the product and reason for return. We’ll always inform you in advance if this applies.

Questions:

We're here to help! For any return or refund inquiries, reach out to our Customer Support team at support@openairlifestyles.com.

Or give us a call at (888) 625-6055

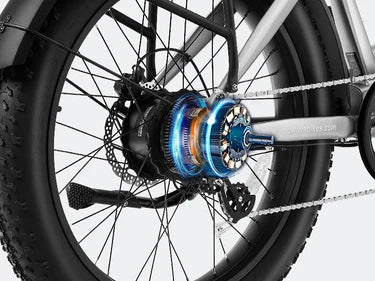

750W Hub Motor.....Experience strong electric power and stability with our 750W Geared Hub Motor, making cruising effortless and hill-climbing a breeze.
Fat Tire Design.....Our 26"*4.0" Fat Tire is anti-skidding and wear-resistant, adapting seamlessly to various terrains such as snow and sand, providing smooth rides on rugged landscapes.

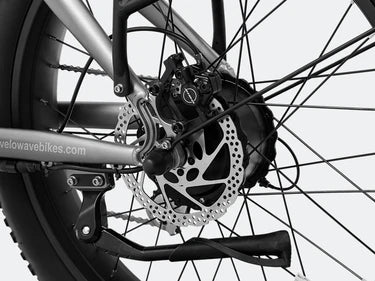

Convenient Control.....Enjoy multiple riding modes and reliable hydraulic disc brakes for perfect braking performance and a seamless riding experience.

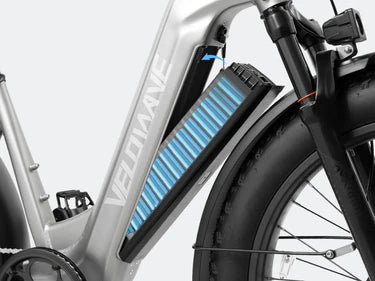

Removable LG Battery.....Powered by a high-quality 48V 15AH LG battery, our e-bike covers up to 90 miles on a single charge and is conveniently lockable and removable for easy charging.

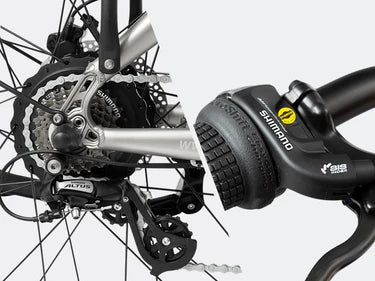

Shimano Derailleur.....Conquer steep hills and cruise at high speeds effortlessly with our 7-speed cassette transmission featuring an 11T to 32T gear range.

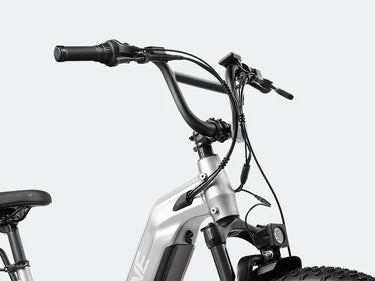

Upright Handlebar.....Embrace comfort and safety with our Ranger E-Bike's upright handlebars, providing a clearer view of the road, reduced wrist pressure, and enhanced control for extended rides.

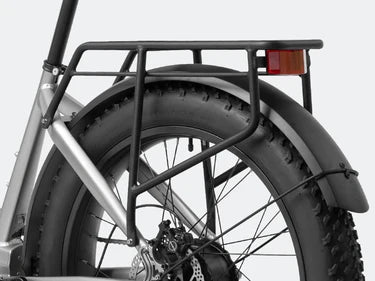

Rack & Fenders.....Carry cargo effortlessly and maintain a stylishly clean appearance on- and off-road with our practical rear rack and upgraded 1-piece fender package.

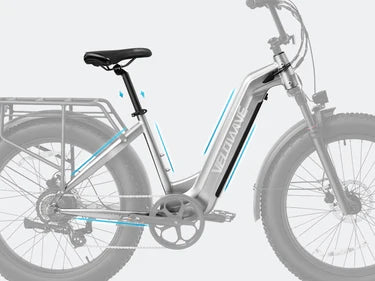

6061 Aluminum Frame.....Our Step-Thru Frame ensures easy on-off access for all riders, while the reinforced rear triangle supports up to 350 lbs, accommodating most users with ease.

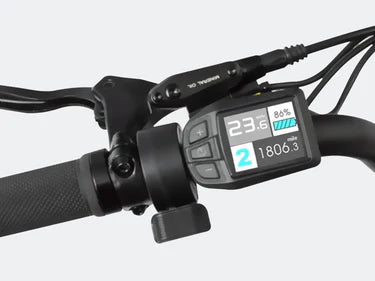

Throttle & Display.....Experience power on demand with the intuitive thumb throttle and stay informed with real-time metrics and customizable riding modes on our advanced display.
